Multitrack class. More...

#include <mlt_multitrack.h>

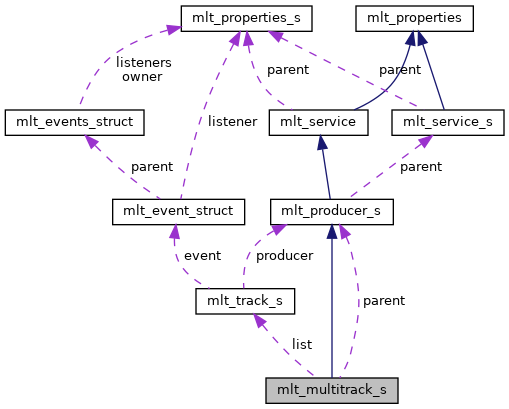

Inheritance diagram for mlt_multitrack_s:

Public Member Functions
mlt_position	mlt_multitrack_clip (mlt_multitrack self, mlt_whence whence, int index)
	Determine the clip point. More...

void	mlt_multitrack_close (mlt_multitrack self)
	Close this instance and free its resources. More...

int	mlt_multitrack_connect (mlt_multitrack self, mlt_producer producer, int track)
	Connect a producer to a given track. More...

int	mlt_multitrack_count (mlt_multitrack self)
	Get the number of tracks. More...

int	mlt_multitrack_disconnect (mlt_multitrack self, int track)
	Remove the N-th track. More...

mlt_multitrack	mlt_multitrack_init ()
	Construct and initialize a new multitrack. More...

int	mlt_multitrack_insert (mlt_multitrack self, mlt_producer producer, int track)
	Insert a producer to a given track. More...

mlt_producer	mlt_multitrack_producer (mlt_multitrack self)
	Get the producer associated to this multitrack. More...

mlt_properties	mlt_multitrack_properties (mlt_multitrack self)
	Get the properties associated this multitrack. More...

void	mlt_multitrack_refresh (mlt_multitrack self)
	Initialize position related information. More...

mlt_service	mlt_multitrack_service (mlt_multitrack self)
	Get the service associated this multitrack. More...

mlt_producer	mlt_multitrack_track (mlt_multitrack self, int track)
	Get an individual track as a producer. More...

Public Member Functions inherited from mlt_producer_s
int	mlt_producer_attach (mlt_producer self, mlt_filter filter)
	Attach a filter. More...

int	mlt_producer_clear (mlt_producer self)
	Physically reduce the producer (typically a cut) to a 0 length. More...

void	mlt_producer_close (mlt_producer self)
	Close the producer. More...

mlt_producer	mlt_producer_cut (mlt_producer self, int in, int out)
	Create a cut of this producer. More...

mlt_producer	mlt_producer_cut_parent (mlt_producer self)
	Obtain the parent producer. More...

int	mlt_producer_detach (mlt_producer self, mlt_filter filter)
	Detach a filter. More...

mlt_filter	mlt_producer_filter (mlt_producer self, int index)
	Retrieve a filter. More...

mlt_position	mlt_producer_frame (mlt_producer self)
	Get the current position (relative to start of producer). More...

char *	mlt_producer_frame_time (mlt_producer self, mlt_time_format format)
	Get the current position (relative to start of producer) as a time string. More...

int64_t	mlt_producer_get_creation_time (mlt_producer self)
	Get the creation time for the producer. More...

double	mlt_producer_get_fps (mlt_producer self)
	Get the frames per second. More...

mlt_position	mlt_producer_get_in (mlt_producer self)
	Get the in point. More...

mlt_position	mlt_producer_get_length (mlt_producer self)
	Get the total, unedited length of the producer. More...

char *	mlt_producer_get_length_time (mlt_producer self, mlt_time_format format)
	Get the total, unedited length of the producer as a time string. More...

mlt_position	mlt_producer_get_out (mlt_producer self)
	Get the out point. More...

mlt_position	mlt_producer_get_playtime (mlt_producer self)
	Get the total play time. More...

double	mlt_producer_get_speed (mlt_producer self)
	Get the playing speed. More...

int	mlt_producer_init (mlt_producer self, void *child)
	Initialize a producer service. More...

int	mlt_producer_is_blank (mlt_producer self)
	Determine if the producer is a blank. More...

int	mlt_producer_is_cut (mlt_producer self)
	Determine if producer is a cut. More...

int	mlt_producer_is_mix (mlt_producer self)
	Determine if producer is a mix. More...

mlt_producer	mlt_producer_new (mlt_profile profile)
	Create and initialize a new producer. More...

int	mlt_producer_optimise (mlt_producer self)
	Optimise for overlapping cuts from the same clip. More...

mlt_position	mlt_producer_position (mlt_producer self)
	Get the current position (relative to in point). More...

void	mlt_producer_prepare_next (mlt_producer self)
	Prepare for next frame. More...

int	mlt_producer_probe (mlt_producer self)
	Probe the producer to publish metadata properties. More...

mlt_properties	mlt_producer_properties (mlt_producer self)
	Get the producer properties. More...

int	mlt_producer_seek (mlt_producer self, mlt_position position)
	Seek to a specified position. More...

int	mlt_producer_seek_time (mlt_producer self, const char *time)
	Seek to a specified time string. More...

mlt_service	mlt_producer_service (mlt_producer self)
	Get the parent service object. More...

void	mlt_producer_set_creation_time (mlt_producer self, int64_t creation_time)
	Set the creation time for the producer. More...

int	mlt_producer_set_in_and_out (mlt_producer self, mlt_position in, mlt_position out)
	Set the in and out points. More...

int	mlt_producer_set_speed (mlt_producer self, double speed)
	Set the playing speed. More...

Public Member Functions inherited from mlt_service_s
void	mlt_service_apply_filters (mlt_service self, mlt_frame frame, int index)
	Recursively apply attached filters. More...

int	mlt_service_attach (mlt_service self, mlt_filter filter)
	Attach a filter. More...

mlt_cache_item	mlt_service_cache_get (mlt_service self, const char *name)
	Get an object from a service's cache. More...

int	mlt_service_cache_get_size (mlt_service self, const char *name)
	Get the current maximum size of the named cache. More...

void	mlt_service_cache_put (mlt_service self, const char name, void data, int size, mlt_destructor destructor)
	Put an object into a service's cache. More...

void	mlt_service_cache_set_size (mlt_service self, const char *name, int size)
	Set the number of items to cache for the named cache. More...

void	mlt_service_close (mlt_service self)
	Destroy a service. More...

int	mlt_service_connect_producer (mlt_service self, mlt_service producer, int index)
	Connect a producer to the service. More...

mlt_service	mlt_service_consumer (mlt_service self)
	Obtain the consumer a service is connected to. More...

int	mlt_service_detach (mlt_service self, mlt_filter filter)
	Detach a filter. More...

int	mlt_service_disconnect_all_producers (mlt_service self)
	Remove the all the attached producers. More...

int	mlt_service_disconnect_producer (mlt_service self, int index)
	Remove the N-th producer. More...

mlt_filter	mlt_service_filter (mlt_service self, int index)
	Retrieve an attached filter. More...

int	mlt_service_filter_count (mlt_service self)
	Get the number of filters attached. More...

int	mlt_service_get_frame (mlt_service self, mlt_frame_ptr frame, int index)
	Obtain a frame. More...

mlt_service	mlt_service_get_producer (mlt_service self)
	Get the first connected producer. More...

mlt_service_type	mlt_service_identify (mlt_service self)
	Identify the subclass of the service. More...

int	mlt_service_init (mlt_service self, void *child)
	Initialize a service. More...

int	mlt_service_insert_producer (mlt_service self, mlt_service producer, int index)
	Insert a producer connected to the service. More...

void	mlt_service_lock (mlt_service self)
	Acquire a mutual exclusion lock on this service. More...

int	mlt_service_move_filter (mlt_service self, int from, int to)
	Reorder the attached filters. More...

mlt_service	mlt_service_producer (mlt_service self)
	Obtain the producer a service is connected to. More...

mlt_profile	mlt_service_profile (mlt_service self)
	Retrieve the profile. More...

mlt_properties	mlt_service_properties (mlt_service self)
	Return the properties object. More...

void	mlt_service_set_profile (mlt_service self, mlt_profile profile)
	Set the profile for a service. More...

void	mlt_service_unlock (mlt_service self)
	Release a mutual exclusion lock on this service. More...

Public Member Functions inherited from mlt_properties_s
char *	mlt_properties_anim_get (mlt_properties self, const char *name, int position, int length)
	Get a string value by name at a frame position. More...

mlt_color	mlt_properties_anim_get_color (mlt_properties self, const char *name, int position, int length)
	Get a color associated to the name at a frame position. More...

double	mlt_properties_anim_get_double (mlt_properties self, const char *name, int position, int length)
	Get a real number associated to the name at a frame position. More...

int	mlt_properties_anim_get_int (mlt_properties self, const char *name, int position, int length)
	Get an integer associated to the name at a frame position. More...

mlt_rect	mlt_properties_anim_get_rect (mlt_properties self, const char *name, int position, int length)
	Get a rectangle associated to the name at a frame position. More...

int	mlt_properties_anim_set (mlt_properties self, const char name, const char value, int position, int length)
	Set a property to a string at a frame position. More...

int	mlt_properties_anim_set_color (mlt_properties self, const char *name, mlt_color value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value by color at a frame position. More...

int	mlt_properties_anim_set_double (mlt_properties self, const char *name, double value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a real number at a frame position. More...

int	mlt_properties_anim_set_int (mlt_properties self, const char *name, int value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value at a frame position. More...

int	mlt_properties_anim_set_rect (mlt_properties self, const char *name, mlt_rect value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a rectangle value at a frame position. More...

void	mlt_properties_clear (mlt_properties self, const char *name)
	Remove the value for a property. More...

void	mlt_properties_close (mlt_properties self)
	Close a properties object. More...

int	mlt_properties_copy (mlt_properties self, mlt_properties that, const char *prefix)
	Copy all serializable properties that match a prefix to another properties object. More...

int	mlt_properties_count (mlt_properties self)
	Return the number of items in the list. More...

void	mlt_properties_debug (mlt_properties self, const char title, FILE output)
	Output the properties to a file handle. More...

int	mlt_properties_dec_ref (mlt_properties self)
	Decrement the reference count. More...

int	mlt_properties_dir_list (mlt_properties self, const char dirname, const char pattern, int sort)
	Get the contents of a directory. More...

void	mlt_properties_dump (mlt_properties self, FILE *output)
	Dump the properties to a file handle. More...

int	mlt_properties_exists (mlt_properties self, const char *name)
	Check if a property exists. More...

char *	mlt_properties_frames_to_time (mlt_properties self, mlt_position frames, mlt_time_format format)
	Convert a frame count to a time string. More...

int	mlt_properties_from_utf8 (mlt_properties properties, const char name_from, const char name_to)
	Convert UTF-8 property to the locale-defined encoding. More...

char *	mlt_properties_get (mlt_properties self, const char *name)
	Get a string value by name. More...

mlt_animation	mlt_properties_get_animation (mlt_properties self, const char *name)
	Get the animation associated to the name. More...

mlt_color	mlt_properties_get_color (mlt_properties self, const char *name)
	Convert a numeric property to a tuple of color components. More...

void *	mlt_properties_get_data (mlt_properties self, const char name, int length)
	Get a binary data value associated to the name. More...

void *	mlt_properties_get_data_at (mlt_properties self, int index, int *size)
	Get a data value by index. More...

double	mlt_properties_get_double (mlt_properties self, const char *name)
	Get a floating point value associated to the name. More...

int	mlt_properties_get_int (mlt_properties self, const char *name)
	Get an integer associated to the name. More...

int64_t	mlt_properties_get_int64 (mlt_properties self, const char *name)
	Get a 64-bit integer associated to the name. More...

const char *	mlt_properties_get_lcnumeric (mlt_properties self)
	Get the numeric locale for this properties object. More...

char *	mlt_properties_get_name (mlt_properties self, int index)
	Get a property name by index. More...

mlt_position	mlt_properties_get_position (mlt_properties self, const char *name)
	Get a position value associated to the name. More...

mlt_properties	mlt_properties_get_properties (mlt_properties self, const char *name)
	Get a nested properties object by name. More...

mlt_properties	mlt_properties_get_properties_at (mlt_properties self, int index)
	Get a nested properties object by index. More...

mlt_rect	mlt_properties_get_rect (mlt_properties self, const char *name)
	Get a rectangle associated to the name. More...

char *	mlt_properties_get_time (mlt_properties self, const char *name, mlt_time_format format)
	Get a time string associated to the name. More...

char *	mlt_properties_get_value (mlt_properties self, int index)
	Get a property's string value by index. More...

char *	mlt_properties_get_value_tf (mlt_properties self, int index, mlt_time_format time_format)
	Get a property's string value by index (with time format). More...

int	mlt_properties_inc_ref (mlt_properties self)
	Increment the reference count. More...

int	mlt_properties_inherit (mlt_properties self, mlt_properties that)
	Copy all serializable properties to another properties list. More...

int	mlt_properties_init (mlt_properties self, void *child)
	Initialize a properties object that was already allocated. More...

int	mlt_properties_is_anim (mlt_properties self, const char *name)
	Check if a property is animated. More...

int	mlt_properties_is_sequence (mlt_properties properties)
	Determine if the properties list is really just a sequence or ordered list. More...

mlt_properties	mlt_properties_load (const char *filename)
	Create a properties object by reading a .properties text file. More...

void	mlt_properties_lock (mlt_properties self)
	Protect a properties list against concurrent access. More...

void	mlt_properties_mirror (mlt_properties self, mlt_properties that)
	Set a properties list to be a mirror copy of another. More...

mlt_properties	mlt_properties_new ()
	Create a properties object. More...

int	mlt_properties_parse (mlt_properties self, const char *namevalue)
	Set a value by parsing a name=value string. More...

mlt_properties	mlt_properties_parse_yaml (const char *filename)
	Parse a YAML Tiny file by name. More...

int	mlt_properties_pass (mlt_properties self, mlt_properties that, const char *prefix)
	Pass all serializable properties that match a prefix to another properties object. More...

int	mlt_properties_pass_list (mlt_properties self, mlt_properties that, const char *list)
	Copy all properties specified in a comma-separated list to another properties list. More...

void	mlt_properties_pass_property (mlt_properties self, mlt_properties that, const char *name)
	Copy a property to another properties list. More...

int	mlt_properties_preset (mlt_properties self, const char *name)
	Set properties from a preset. More...

int	mlt_properties_ref_count (mlt_properties self)
	Get the reference count. More...

int	mlt_properties_rename (mlt_properties self, const char source, const char dest)
	Rename a property. More...

int	mlt_properties_save (mlt_properties self, const char *filename)
	Save the properties to a file by name. More...

char *	mlt_properties_serialise_yaml (mlt_properties self)
	Serialize a properties list as a string of YAML Tiny. More...

int	mlt_properties_set (mlt_properties self, const char name, const char value)
	Set a property to a string. More...

int	mlt_properties_set_color (mlt_properties self, const char *name, mlt_color color)
	Set a property to an integer value by color. More...

int	mlt_properties_set_data (mlt_properties self, const char name, void value, int length, mlt_destructor destroy, mlt_serialiser serialise)
	Store binary data as a property. More...

int	mlt_properties_set_double (mlt_properties self, const char *name, double value)
	Set a property to a floating point value. More...

int	mlt_properties_set_int (mlt_properties self, const char *name, int value)
	Set a property to an integer value. More...

int	mlt_properties_set_int64 (mlt_properties self, const char *name, int64_t value)
	Set a property to a 64-bit integer value. More...

int	mlt_properties_set_lcnumeric (mlt_properties self, const char *locale)
	Set the numeric locale used for string/double conversions. More...

int	mlt_properties_set_or_default (mlt_properties self, const char name, const char value, const char *def)
	Set or default a property to a string. More...

int	mlt_properties_set_position (mlt_properties self, const char *name, mlt_position value)
	Set a property to a position value. More...

int	mlt_properties_set_properties (mlt_properties self, const char *name, mlt_properties properties)
	Set a property to a nested properties object. More...

int	mlt_properties_set_rect (mlt_properties self, const char *name, mlt_rect value)
	Set a property to a rectangle value. More...

int	mlt_properties_set_string (mlt_properties self, const char name, const char value)
	Set a property to a string. More...

mlt_position	mlt_properties_time_to_frames (mlt_properties self, const char *time)
	Convert a time string to a frame count. More...

void	mlt_properties_unlock (mlt_properties self)
	End protecting a properties list against concurrent access. More...

Data Fields
int	count

mlt_track *	list

struct mlt_producer_s	parent
	We're extending producer here. More...

int	size

Data Fields inherited from mlt_producer_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

int(*	get_frame )(mlt_producer, mlt_frame_ptr, int)
	Get a frame of data (virtual function). More...

struct mlt_service_s	parent
	A producer is a service. More...

int(*	seek )(mlt_producer, mlt_position)
	Seek to a specified position (virtual function). More...

int(*	set_in_and_out )(mlt_producer, mlt_position, mlt_position)
	Set the in and out points. More...

Data Fields inherited from mlt_service_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

int(*	get_frame )(mlt_service self, mlt_frame_ptr frame, int index)
	Get a frame of data (virtual function). More...

Data Fields inherited from mlt_properties_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

Private Member Functions
static int	add_unique (mlt_position *array, int size, mlt_position position)
	Add a position to a set. More...

static void	mlt_multitrack_listener (mlt_producer producer, mlt_multitrack self)
	Listener for producers on the playlist. More...

static int	position_compare (const void p1, const void p2)
	Position comparison function for sorting. More...

static int	producer_get_frame (mlt_producer parent, mlt_frame_ptr frame, int index)
	Get frame method. More...

static mlt_position *	resize_set (mlt_position map, int count, int size)
	Increase the capacity of a set of mlt_position. More...

Detailed Description

Multitrack class.

A multitrack is a parallel container of producers that acts a single producer.

Property:: log_id not currently used, but sets it to "mulitrack"

Member Function Documentation

◆ add_unique()

static int add_unique	(	mlt_position *	array,
		int	size,
		mlt_position	position
	)

private

Add a position to a set.

Parameters

array	an array of positions (the set)
size	the current number of positions in the array (not the capacity of the array)
position	the position to add

Returns: the new size of the array

◆ mlt_multitrack_clip()

mlt_position mlt_multitrack_clip	(	mlt_multitrack	self,
		mlt_whence	whence,
		int	index
	)

Determine the clip point.

Special case here: a 'producer' has no concept of multiple clips - only the
playlist and multitrack producers have clip functionality. Further to that a
multitrack determines clip information from any connected tracks that happen
to be playlists.

Additionally, it must locate clips in the correct order, for example, consider
the following track arrangement:

playlist1 |0.0     |b0.0      |0.1          |0.1         |0.2           |
playlist2 |b1.0  |1.0           |b1.1     |1.1             |

Note - b clips represent blanks. They are also reported as clip positions.

When extracting clip positions from these playlists, we should get a sequence of:

0.0, 1.0, b0.0, 0.1, b1.1, 1.1, 0.1, 0.2, [out of playlist2], [out of playlist1]

Parameters

self	a multitrack
whence	from where to extract
index	the 0-based index of which clip to extract

Returns: the position of clip index relative to whence

◆ mlt_multitrack_close()

void mlt_multitrack_close ( mlt_multitrack self )

Close this instance and free its resources.

Parameters

self	a multitrack

◆ mlt_multitrack_connect()

int mlt_multitrack_connect	(	mlt_multitrack	self,
		mlt_producer	producer,
		int	track
	)

Connect a producer to a given track.

Note that any producer can be connected here, but see special case treatment of playlist in clip point determination below.

Parameters

self	a multitrack
producer	the producer to connect to the multitrack producer
track	the 0-based index of the track on which to connect the multitrack

Returns: true on error

◆ mlt_multitrack_count()

int mlt_multitrack_count ( mlt_multitrack self )

Get the number of tracks.

Parameters

self	a multitrack

Returns: the number of tracks

◆ mlt_multitrack_disconnect()

int mlt_multitrack_disconnect	(	mlt_multitrack	self,
		int	track
	)

Remove the N-th track.

Parameters

self	a multitrack
track	the index of the track to remove

Returns: true if there was an error

◆ mlt_multitrack_init()

mlt_multitrack mlt_multitrack_init ( )

Construct and initialize a new multitrack.

Sets the resource property to "<multitrack>".

Returns: a new multitrack

◆ mlt_multitrack_insert()

int mlt_multitrack_insert	(	mlt_multitrack	self,
		mlt_producer	producer,
		int	track
	)

Insert a producer to a given track.

Parameters

self	a multitrack
producer	the producer to connect to the multitrack producer
track	the 0-based index of the track on which to connect the multitrack

Returns: true on error

◆ mlt_multitrack_listener()

static void mlt_multitrack_listener	(	mlt_producer	producer,
		mlt_multitrack	self
	)

private

Listener for producers on the playlist.

Parameters

producer	a producer
self	a multitrack

◆ mlt_multitrack_producer()

mlt_producer mlt_multitrack_producer ( mlt_multitrack self )

Get the producer associated to this multitrack.

Parameters

self	a multitrack

Returns: the producer object

See also: MLT_MULTITRACK_PRODUCER

◆ mlt_multitrack_properties()

mlt_properties mlt_multitrack_properties ( mlt_multitrack self )

Get the properties associated this multitrack.

Parameters

self	a multitrack

Returns: the multitrack's property list

See also: MLT_MULTITRACK_PROPERTIES

◆ mlt_multitrack_refresh()

void mlt_multitrack_refresh ( mlt_multitrack self )

Initialize position related information.

Parameters

self	a multitrack

◆ mlt_multitrack_service()

mlt_service mlt_multitrack_service ( mlt_multitrack self )

Get the service associated this multitrack.

Parameters

self	a multitrack

Returns: the service object

See also: MLT_MULTITRACK_SERVICE

◆ mlt_multitrack_track()

mlt_producer mlt_multitrack_track	(	mlt_multitrack	self,
		int	track
	)

Get an individual track as a producer.

Parameters

self	a multitrack
track	the 0-based index of the producer to get

Returns: the producer or NULL if not valid

◆ position_compare()

static int position_compare	(	const void *	p1,
		const void *	p2
	)

private

Position comparison function for sorting.

Parameters

p1	a position
p2	another position

Returns: <0 if p1 is less than p2, 0 if equal, >0 if greater

◆ producer_get_frame()

static int producer_get_frame	(	mlt_producer	parent,
		mlt_frame_ptr	frame,
		int	index
	)

private

Get frame method.

Special case here: The multitrack must be used in a conjunction with a downstream
tractor-type service, ie:

Producer1 \
Producer2 - multitrack - { filters/transitions } - tractor - consumer
Producer3 /

The get_frame of a tractor pulls frames from it's connected service on all tracks and
will terminate as soon as it receives a test card with a last_track property. The
important case here is that the mulitrack does not move to the next frame until all
tracks have been pulled.

Reasoning: In order to seek on a network such as above, the multitrack needs to ensure
that all producers are positioned on the same frame. It uses the 'last track' logic
to determine when to move to the next frame.

Flaw: if a transition is configured to read from a b-track which happens to trigger
the last frame logic (ie: it's configured incorrectly), then things are going to go
out of sync.

See playlist logic too.

Parameters

	parent	the producer interface to a mulitrack
[out]	frame	a frame by reference
	index	the 0-based track index

Returns: true if there was an error

◆ resize_set()

static mlt_position * resize_set	(	mlt_position *	map,
		int	count,
		int *	size
	)

private

Increase the capacity of a set of mlt_position.

Parameters

	array	an array of positions (the set)
	count	the current number of elements in the array (not the capacity)
[out]	size	the current capacity of the array

Returns: the new address of the array

Field Documentation

◆ count

int mlt_multitrack_s::count

◆ list

mlt_track* mlt_multitrack_s::list

◆ parent

struct mlt_producer_s mlt_multitrack_s::parent

We're extending producer here.

◆ size

int mlt_multitrack_s::size

The documentation for this struct was generated from the following files:

Public Member Functions

Data Fields

Private Member Functions

Detailed Description

Member Function Documentation

◆ add_unique()

◆ mlt_multitrack_clip()

◆ mlt_multitrack_close()

◆ mlt_multitrack_connect()

◆ mlt_multitrack_count()

◆ mlt_multitrack_disconnect()

◆ mlt_multitrack_init()

◆ mlt_multitrack_insert()

◆ mlt_multitrack_listener()

◆ mlt_multitrack_producer()

◆ mlt_multitrack_properties()

◆ mlt_multitrack_refresh()

◆ mlt_multitrack_service()

◆ mlt_multitrack_track()

◆ position_compare()

◆ producer_get_frame()

◆ resize_set()

Field Documentation

◆ count

◆ list

◆ parent

◆ size
