mlt_properties_s Struct Reference

Properties class. More...

#include <mlt_properties.h>

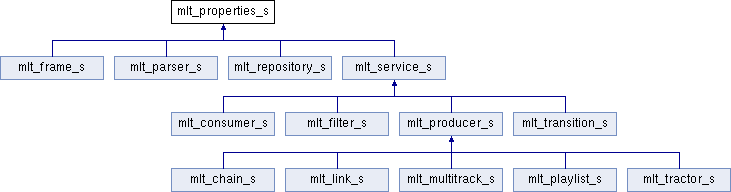

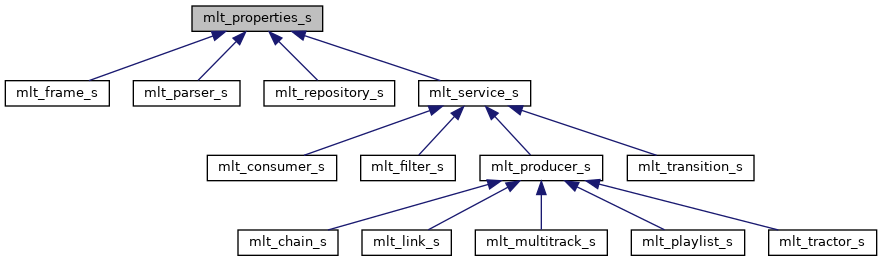

Inheritance diagram for mlt_properties_s:

Public Member Functions
char *	mlt_properties_anim_get (mlt_properties self, const char *name, int position, int length)
	Get a string value by name at a frame position. More...
mlt_color	mlt_properties_anim_get_color (mlt_properties self, const char *name, int position, int length)
	Get a color associated to the name at a frame position. More...
double	mlt_properties_anim_get_double (mlt_properties self, const char *name, int position, int length)
	Get a real number associated to the name at a frame position. More...
int	mlt_properties_anim_get_int (mlt_properties self, const char *name, int position, int length)
	Get an integer associated to the name at a frame position. More...
mlt_rect	mlt_properties_anim_get_rect (mlt_properties self, const char *name, int position, int length)
	Get a rectangle associated to the name at a frame position. More...
int	mlt_properties_anim_set (mlt_properties self, const char *name, const char *value, int position, int length)
	Set a property to a string at a frame position. More...
int	mlt_properties_anim_set_color (mlt_properties self, const char *name, mlt_color value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value by color at a frame position. More...
int	mlt_properties_anim_set_double (mlt_properties self, const char *name, double value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a real number at a frame position. More...
int	mlt_properties_anim_set_int (mlt_properties self, const char *name, int value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value at a frame position. More...
int	mlt_properties_anim_set_rect (mlt_properties self, const char *name, mlt_rect value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a rectangle value at a frame position. More...
void	mlt_properties_clear (mlt_properties self, const char *name)
	Remove the value for a property. More...
void	mlt_properties_close (mlt_properties self)
	Close a properties object. More...
int	mlt_properties_copy (mlt_properties self, mlt_properties that, const char *prefix)
	Copy all serializable properties that match a prefix to another properties object. More...
int	mlt_properties_count (mlt_properties self)
	Return the number of items in the list. More...
void	mlt_properties_debug (mlt_properties self, const char *title, FILE *output)
	Output the properties to a file handle. More...
int	mlt_properties_dec_ref (mlt_properties self)
	Decrement the reference count. More...
int	mlt_properties_dir_list (mlt_properties self, const char *dirname, const char *pattern, int sort)
	Get the contents of a directory. More...
void	mlt_properties_dump (mlt_properties self, FILE *output)
	Dump the properties to a file handle. More...
int	mlt_properties_exists (mlt_properties self, const char *name)
	Check if a property exists. More...
char *	mlt_properties_frames_to_time (mlt_properties self, mlt_position frames, mlt_time_format format)
	Convert a frame count to a time string. More...
int	mlt_properties_from_utf8 (mlt_properties properties, const char *name_from, const char *name_to)
	Convert UTF-8 property to the locale-defined encoding. More...
char *	mlt_properties_get (mlt_properties self, const char *name)
	Get a string value by name. More...
mlt_animation	mlt_properties_get_animation (mlt_properties self, const char *name)
	Get the animation associated to the name. More...
mlt_color	mlt_properties_get_color (mlt_properties self, const char *name)
	Convert a numeric property to a tuple of color components. More...
void *	mlt_properties_get_data (mlt_properties self, const char *name, int *length)
	Get a binary data value associated to the name. More...
void *	mlt_properties_get_data_at (mlt_properties self, int index, int *size)
	Get a data value by index. More...
double	mlt_properties_get_double (mlt_properties self, const char *name)
	Get a floating point value associated to the name. More...
int	mlt_properties_get_int (mlt_properties self, const char *name)
	Get an integer associated to the name. More...
int64_t	mlt_properties_get_int64 (mlt_properties self, const char *name)
	Get a 64-bit integer associated to the name. More...
const char *	mlt_properties_get_lcnumeric (mlt_properties self)
	Get the numeric locale for this properties object. More...
char *	mlt_properties_get_name (mlt_properties self, int index)
	Get a property name by index. More...
mlt_position	mlt_properties_get_position (mlt_properties self, const char *name)
	Get a position value associated to the name. More...
mlt_properties	mlt_properties_get_properties (mlt_properties self, const char *name)
	Get a nested properties object by name. More...
mlt_properties	mlt_properties_get_properties_at (mlt_properties self, int index)
	Get a nested properties object by index. More...
mlt_rect	mlt_properties_get_rect (mlt_properties self, const char *name)
	Get a rectangle associated to the name. More...
char *	mlt_properties_get_time (mlt_properties self, const char *name, mlt_time_format format)
	Get a time string associated to the name. More...
char *	mlt_properties_get_value (mlt_properties self, int index)
	Get a property's string value by index. More...
char *	mlt_properties_get_value_tf (mlt_properties self, int index, mlt_time_format time_format)
	Get a property's string value by index (with time format). More...
int	mlt_properties_inc_ref (mlt_properties self)
	Increment the reference count. More...
int	mlt_properties_inherit (mlt_properties self, mlt_properties that)
	Copy all serializable properties to another properties list. More...
int	mlt_properties_init (mlt_properties self, void *child)
	Initialize a properties object that was already allocated. More...
int	mlt_properties_is_anim (mlt_properties self, const char *name)
	Check if a property is animated. More...
int	mlt_properties_is_sequence (mlt_properties properties)
	Determine if the properties list is really just a sequence or ordered list. More...
mlt_properties	mlt_properties_load (const char *filename)
	Create a properties object by reading a .properties text file. More...
void	mlt_properties_lock (mlt_properties self)
	Protect a properties list against concurrent access. More...
void	mlt_properties_mirror (mlt_properties self, mlt_properties that)
	Set a properties list to be a mirror copy of another. More...
mlt_properties	mlt_properties_new ()
	Create a properties object. More...
int	mlt_properties_parse (mlt_properties self, const char *namevalue)
	Set a value by parsing a name=value string. More...
mlt_properties	mlt_properties_parse_yaml (const char *filename)
	Parse a YAML Tiny file by name. More...
int	mlt_properties_pass (mlt_properties self, mlt_properties that, const char *prefix)
	Pass all serializable properties that match a prefix to another properties object. More...
int	mlt_properties_pass_list (mlt_properties self, mlt_properties that, const char *list)
	Copy all properties specified in a comma-separated list to another properties list. More...
void	mlt_properties_pass_property (mlt_properties self, mlt_properties that, const char *name)
	Copy a property to another properties list. More...
int	mlt_properties_preset (mlt_properties self, const char *name)
	Set properties from a preset. More...
int	mlt_properties_ref_count (mlt_properties self)
	Get the reference count. More...
int	mlt_properties_rename (mlt_properties self, const char *source, const char *dest)
	Rename a property. More...
int	mlt_properties_save (mlt_properties self, const char *filename)
	Save the properties to a file by name. More...
char *	mlt_properties_serialise_yaml (mlt_properties self)
	Serialize a properties list as a string of YAML Tiny. More...
int	mlt_properties_set (mlt_properties self, const char *name, const char *value)
	Set a property to a string. More...
int	mlt_properties_set_color (mlt_properties self, const char *name, mlt_color color)
	Set a property to an integer value by color. More...
int	mlt_properties_set_data (mlt_properties self, const char *name, void *value, int length, mlt_destructor destroy, mlt_serialiser serialise)
	Store binary data as a property. More...
int	mlt_properties_set_double (mlt_properties self, const char *name, double value)
	Set a property to a floating point value. More...
int	mlt_properties_set_int (mlt_properties self, const char *name, int value)
	Set a property to an integer value. More...
int	mlt_properties_set_int64 (mlt_properties self, const char *name, int64_t value)
	Set a property to a 64-bit integer value. More...
int	mlt_properties_set_lcnumeric (mlt_properties self, const char *locale)
	Set the numeric locale used for string/double conversions. More...
int	mlt_properties_set_or_default (mlt_properties self, const char *name, const char *value, const char *def)
	Set or default a property to a string. More...
int	mlt_properties_set_position (mlt_properties self, const char *name, mlt_position value)
	Set a property to a position value. More...
int	mlt_properties_set_properties (mlt_properties self, const char *name, mlt_properties properties)
	Set a property to a nested properties object. More...
int	mlt_properties_set_rect (mlt_properties self, const char *name, mlt_rect value)
	Set a property to a rectangle value. More...
int	mlt_properties_set_string (mlt_properties self, const char *name, const char *value)
	Set a property to a string. More...
mlt_position	mlt_properties_time_to_frames (mlt_properties self, const char *time)
	Convert a time string to a frame count. More...
void	mlt_properties_unlock (mlt_properties self)
	End protecting a properties list against concurrent access. More...

Data Fields
mlt_destructor	close
	the destructor virtual function More...
void *	close_object
	the object supplied to the close virtual function More...

Private Member Functions
static int	generate_hash (const char *name)
	Generate a hash key. More...
static int	mlt_compare (const void *self, const void *that)
	Compare the string or serialized value of two properties. More...
static int	mlt_fnmatch (const char *wild, const char *file)
	Test whether a filename or pathname matches a shell-style pattern. More...
static mlt_property	mlt_properties_add (mlt_properties self, const char *name)
	Add a new property. More...
static void	mlt_properties_do_mirror (mlt_properties self, const char *name)
	Copy a serializable property to a properties list that is mirroring this one. More...
static mlt_property	mlt_properties_fetch (mlt_properties self, const char *name)
	Fetch a property by name and add one if not found. More...
static mlt_property	mlt_properties_find (mlt_properties self, const char *name)
	Locate a property by name. More...
static void	serialise_yaml (mlt_properties self, strbuf output, int indent, int is_parent_sequence)
	Recursively serialize a properties list into a string buffer as YAML Tiny. More...

Private Attributes
void *	child
	the object of a subclass More...
void *	local
	instance object More...

Detailed Description

Properties class.

Properties is a combination list/dictionary of name/mlt_property pairs. It is also a base class for many of the other MLT classes.

Event:

property-changed a property's value changed; the event data is a string for the name of the property

Member Function Documentation

generate_hash()

static int generate_hash ( const char *  name )

inlineprivate

Generate a hash key.

Parameters

name

a string

Returns

an integer

mlt_compare()

static int mlt_compare ( const void *  self, const void *  that  )

private

Compare the string or serialized value of two properties.

Parameters

self	a property
that	a property

Returns

< 0 if self less than that, 0 if equal, or > 0 if self is greater than that

mlt_fnmatch()

static int mlt_fnmatch ( const char *  wild, const char *  file  )

private

Test whether a filename or pathname matches a shell-style pattern.

Parameters

wild	a string containing a wildcard pattern
file	the name of a file to test against

Returns

true if the file name matches the wildcard pattern

mlt_properties_add()

static mlt_property mlt_properties_add ( mlt_properties  self, const char *  name  )

private

Add a new property.

Parameters

self	a properties list
name	the name of the new property

Returns

the new property

mlt_properties_anim_get()

char * mlt_properties_anim_get	(	mlt_properties	self,
		const char *	name,
		int	position,
		int	length
	)

Get a string value by name at a frame position.

Do not free the returned string. It's lifetime is controlled by the property and this properties object. Enclose a string property value in double quotation marks to prevent mlt_properties_anim_get() from interpreting the string as animation. The double-quotes are removed when retrieved through mlt_properties_anim_get(). The same rule applies to string keyframe values: to protect a keyframed-string value containing a semicolon or equal sign, enclose it in double-quotes.

Parameters

self	a properties list
name	the property to get
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that

Returns

the property's string value or NULL if it does not exist

mlt_properties_anim_get_color()

mlt_color mlt_properties_anim_get_color	(	mlt_properties	self,
		const char *	name,
		int	position,
		int	length
	)

Get a color associated to the name at a frame position.

Parameters

self	a properties list
name	the property to get
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that

Returns

a color structure

mlt_properties_anim_get_double()

double mlt_properties_anim_get_double	(	mlt_properties	self,
		const char *	name,
		int	position,
		int	length
	)

Get a real number associated to the name at a frame position.

Parameters

self	a properties list
name	the property to get
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that

Returns

the real number, 0 if not found (which may also be a legitimate value)

mlt_properties_anim_get_int()

int mlt_properties_anim_get_int	(	mlt_properties	self,
		const char *	name,
		int	position,
		int	length
	)

Get an integer associated to the name at a frame position.

Parameters

self	a properties list
name	the property to get
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that

Returns

the integer value, 0 if not found (which may also be a legitimate value)

mlt_properties_anim_get_rect()

mlt_rect mlt_properties_anim_get_rect	(	mlt_properties	self,
		const char *	name,
		int	position,
		int	length
	)

Get a rectangle associated to the name at a frame position.

Parameters

self	a properties list
name	the property to get
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that

Returns

the rectangle value, the rectangle fields will be DBL_MIN if not found

mlt_properties_anim_set()

int mlt_properties_anim_set	(	mlt_properties	self,
		const char *	name,
		const char *	value,
		int	position,
		int	length
	)

Set a property to a string at a frame position.

The event "property-changed" is fired after the property has been set.

This makes a copy of the string value you supply.

Parameters

self	a properties list
name	the property to set
value	the property's new value
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that

Returns

true if error

mlt_properties_anim_set_color()

int mlt_properties_anim_set_color	(	mlt_properties	self,
		const char *	name,
		mlt_color	value,
		int	position,
		int	length,
		mlt_keyframe_type	keyframe_type
	)

Set a property to an integer value by color at a frame position.

Parameters

self	a properties list
name	the property to set
value	the color
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that
keyframe_type	the interpolation method for this keyframe

Returns

true if error

mlt_properties_anim_set_double()

int mlt_properties_anim_set_double	(	mlt_properties	self,
		const char *	name,
		double	value,
		int	position,
		int	length,
		mlt_keyframe_type	keyframe_type
	)

Set a property to a real number at a frame position.

Parameters

self	a properties list
name	the property to set
value	the real number
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that
keyframe_type	the interpolation method for this keyframe

Returns

true if error

mlt_properties_anim_set_int()

int mlt_properties_anim_set_int	(	mlt_properties	self,
		const char *	name,
		int	value,
		int	position,
		int	length,
		mlt_keyframe_type	keyframe_type
	)

Set a property to an integer value at a frame position.

Parameters

self	a properties list
name	the property to set
value	the integer
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that
keyframe_type	the interpolation method for this keyframe

Returns

true if error

mlt_properties_anim_set_rect()

int mlt_properties_anim_set_rect	(	mlt_properties	self,
		const char *	name,
		mlt_rect	value,
		int	position,
		int	length,
		mlt_keyframe_type	keyframe_type
	)

Set a property to a rectangle value at a frame position.

Parameters

self	a properties list
name	the property to set
value	the rectangle
position	the frame number
length	the maximum number of frames when interpreting negative keyframe times, <=0 if you don't care or need that
keyframe_type	the interpolation method for this keyframe

Returns

true if error

mlt_properties_clear()

void mlt_properties_clear	(	mlt_properties	self,
		const char *	name
	)

Remove the value for a property.

This initializes the value to zero and removes any string, data, or animation. This is especially useful when you want to reset an animation.

Parameters

self	a properties list
name	the name of the property to clear

mlt_properties_close()

void mlt_properties_close

(

mlt_properties

self

)

Close a properties object.

Deallocates the properties object and everything it contains.

Parameters

self	a properties object

mlt_properties_copy()

int mlt_properties_copy	(	mlt_properties	self,
		mlt_properties	that,
		const char *	prefix
	)

Copy all serializable properties that match a prefix to another properties object.

Parameters

self	the properties to copy to
that	The properties to copy from
prefix	the property names to match (required)

Returns

true if error

mlt_properties_count()

int mlt_properties_count

(

mlt_properties

self

)

Return the number of items in the list.

Parameters

self	a properties list

Returns

the number of property objects or -1 if error

mlt_properties_debug()

void mlt_properties_debug	(	mlt_properties	self,
		const char *	title,
		FILE *	output
	)

Output the properties to a file handle.

This version includes reference counts and does not put each property on a new line.

Parameters

self	a properties pointer
title	a string to preface the output
output	a file handle

mlt_properties_dec_ref()

int mlt_properties_dec_ref

(

mlt_properties

self

)

Decrement the reference count.

Parameters

self	a properties list

Returns

the new reference count

mlt_properties_dir_list()

int mlt_properties_dir_list	(	mlt_properties	self,
		const char *	dirname,
		const char *	pattern,
		int	sort
	)

Get the contents of a directory.

Obtains an optionally sorted list of the files found in a directory with a specific wild card. Entries in the list have a numeric name (running from 0 to count - 1). Only values change position if sort is enabled. Designed to be posix compatible (linux, os/x, mingw etc).

Parameters

self	a properties list
dirname	the name of the directory
pattern	a wildcard pattern to filter the directory listing
sort	Do you want to sort the directory listing?

Returns

the number of items in the directory listing

mlt_properties_do_mirror()

static void mlt_properties_do_mirror ( mlt_properties  self, const char *  name  )

inlineprivate

Copy a serializable property to a properties list that is mirroring this one.

Special case - when a container (such as loader) is protecting another producer, we need to ensure that properties are passed through to the real producer.

Parameters

self	a properties list
name	the name of the property to copy

mlt_properties_dump()

void mlt_properties_dump	(	mlt_properties	self,
		FILE *	output
	)

Dump the properties to a file handle.

Parameters

self	a properties list
output	a file handle

mlt_properties_exists()

int mlt_properties_exists	(	mlt_properties	self,
		const char *	name
	)

Check if a property exists.

This function is not a substitute for checking for NULL as a property could be set to NULL.

This function will return false immediately after a call to mlt_properties_clear() or if the property has never been created.

Parameters

self	a properties list
name	the name of the property to query

Returns

true if the property exists

mlt_properties_fetch()

static mlt_property mlt_properties_fetch ( mlt_properties  self, const char *  name  )

private

Fetch a property by name and add one if not found.

Parameters

self	a properties list
name	the property to lookup or add

Returns

the property

mlt_properties_find()

static mlt_property mlt_properties_find ( mlt_properties  self, const char *  name  )

inlineprivate

Locate a property by name.

Parameters

self	a properties list
name	the property to lookup by name

Returns

the property or NULL for failure

mlt_properties_frames_to_time()

char * mlt_properties_frames_to_time	(	mlt_properties	self,
		mlt_position	frames,
		mlt_time_format	format
	)

Convert a frame count to a time string.

Do not free the returned string. It's lifetime is controlled by the property.

Parameters

self	a properties list
frames	the frame count to convert
format	the time format that you want

Returns

the time string or NULL if error, e.g. there is no profile

mlt_properties_from_utf8()

int mlt_properties_from_utf8	(	mlt_properties	properties,
		const char *	name_from,
		const char *	name_to
	)

Convert UTF-8 property to the locale-defined encoding.

MLT uses UTF-8 for strings, but Windows cannot accept UTF-8 for a filename. Windows uses code pages for the locale encoding.

Parameters

self	a properties list
name_from	the property to read whose value is a UTF-8 string
name_to	the name of the new property that will contain converted string

Returns

true if error

mlt_properties_get()

char * mlt_properties_get	(	mlt_properties	self,
		const char *	name
	)

Get a string value by name.

Do not free the returned string. It's lifetime is controlled by the property and this properties object.

Parameters

self	a properties list
name	the property to get

Returns

the property's string value or NULL if it does not exist

mlt_properties_get_animation()

mlt_animation mlt_properties_get_animation	(	mlt_properties	self,
		const char *	name
	)

Get the animation associated to the name.

Parameters

self	a properties list
name	the property to get

Returns

The animation object or NULL if the property has no animation

mlt_properties_get_color()

mlt_color mlt_properties_get_color	(	mlt_properties	self,
		const char *	name
	)

Convert a numeric property to a tuple of color components.

If the property's string is red, green, blue, white, or black, then it is converted to the corresponding opaque color tuple. Otherwise, the property is fetched as an integer and then converted.

Parameters

self	a properties list
name	the property to get

Returns

a color structure

mlt_properties_get_data()

void * mlt_properties_get_data	(	mlt_properties	self,
		const char *	name,
		int *	length
	)

Get a binary data value associated to the name.

Do not free the returned pointer if you supplied a destructor function when you set this property.

Parameters

	self	a properties list
	name	the property to get
[out]	length	The size of the binary data in bytes, if available (often it is not, you should know)

mlt_properties_get_data_at()

void * mlt_properties_get_data_at	(	mlt_properties	self,
		int	index,
		int *	size
	)

Get a data value by index.

Do not free the returned pointer if you supplied a destructor function when you set this property.

Parameters

	self	a properties list
	index	the numeric index of the property
[out]	size	the size of the binary data in bytes or NULL if the index is out of range

mlt_properties_get_double()

double mlt_properties_get_double	(	mlt_properties	self,
		const char *	name
	)

Get a floating point value associated to the name.

Parameters

self	a properties list
name	the property to get

Returns

the floating point, 0 if not found (which may also be a legitimate value)

mlt_properties_get_int()

int mlt_properties_get_int	(	mlt_properties	self,
		const char *	name
	)

Get an integer associated to the name.

Parameters

self	a properties list
name	the property to get

Returns

The integer value, 0 if not found (which may also be a legitimate value)

mlt_properties_get_int64()

int64_t mlt_properties_get_int64	(	mlt_properties	self,
		const char *	name
	)

Get a 64-bit integer associated to the name.

Parameters

self	a properties list
name	the property to get

Returns

the integer value, 0 if not found (which may also be a legitimate value)

mlt_properties_get_lcnumeric()

const char * mlt_properties_get_lcnumeric

(

mlt_properties

self

)

Get the numeric locale for this properties object.

Do not free the result.

Parameters

self	a properties list

Returns

the locale name if this properties has a specific locale it is using, NULL otherwise

mlt_properties_get_name()

char * mlt_properties_get_name	(	mlt_properties	self,
		int	index
	)

Get a property name by index.

Do not free the returned string.

Parameters

self	a properties list
index	the numeric index of the property

Returns

the name of the property or NULL if index is out of range

mlt_properties_get_position()

mlt_position mlt_properties_get_position	(	mlt_properties	self,
		const char *	name
	)

Get a position value associated to the name.

Parameters

self	a properties list
name	the property to get

Returns

the position, 0 if not found (which may also be a legitimate value)

mlt_properties_get_properties()

mlt_properties mlt_properties_get_properties	(	mlt_properties	self,
		const char *	name
	)

Get a nested properties object by name.

Parameters

self	a properties list
name	the property to get

Returns

the nested properties list

mlt_properties_get_properties_at()

mlt_properties mlt_properties_get_properties_at	(	mlt_properties	self,
		int	index
	)

Get a nested properties object by index.

Parameters

self	a properties list
index	the 0-based index value of the list item

Returns

the nested properties list

mlt_properties_get_rect()

mlt_rect mlt_properties_get_rect	(	mlt_properties	self,
		const char *	name
	)

Get a rectangle associated to the name.

Parameters

self	a properties list
name	the property to get

Returns

the rectangle value, the rectangle fields will be DBL_MIN if not found

mlt_properties_get_time()

char * mlt_properties_get_time	(	mlt_properties	self,
		const char *	name,
		mlt_time_format	format
	)

Get a time string associated to the name.

Do not free the returned string. It's lifetime is controlled by the property.

Parameters

self	a properties list
name	the property to get
format	the time format that you want

Returns

the property's time value or NULL if name does not exist or there is no profile

mlt_properties_get_value()

char * mlt_properties_get_value	(	mlt_properties	self,
		int	index
	)

Get a property's string value by index.

Do not free the returned string.

Parameters

self	a properties list
index	the numeric index of the property

Returns

the property value as a string or NULL if the index is out of range

mlt_properties_get_value_tf()

char * mlt_properties_get_value_tf	(	mlt_properties	self,
		int	index,
		mlt_time_format	time_format
	)

Get a property's string value by index (with time format).

Do not free the returned string.

Parameters

self	a properties list
index	the numeric index of the property
time_format	the time format to use for animation

Returns

the property value as a string or NULL if the index is out of range

mlt_properties_inc_ref()

int mlt_properties_inc_ref

(

mlt_properties

self

)

Increment the reference count.

Parameters

self	a properties list

Returns

the new reference count

mlt_properties_inherit()

int mlt_properties_inherit	(	mlt_properties	self,
		mlt_properties	that
	)

Copy all serializable properties to another properties list.

Parameters

self	The properties to copy to
that	The properties to copy from

Returns

true if error

mlt_properties_init()

int mlt_properties_init	(	mlt_properties	self,
		void *	child
	)

Initialize a properties object that was already allocated.

This does allocate its property_list, and it adds a reference count.

Parameters

self	the properties structure to initialize
child	an opaque pointer to a subclass object

Returns

true if failed

mlt_properties_is_anim()

int mlt_properties_is_anim	(	mlt_properties	self,
		const char *	name
	)

Check if a property is animated.

Parameters

self	a properties list
name	the property to get

Returns

true if the property is animated

mlt_properties_is_sequence()

int mlt_properties_is_sequence

(

mlt_properties

properties

)

Determine if the properties list is really just a sequence or ordered list.

Parameters

properties

a properties list

Returns

true if all of the property names are numeric (a sequence)

mlt_properties_load()

mlt_properties mlt_properties_load

(

const char *

filename

)

Create a properties object by reading a .properties text file.

Free the properties object with mlt_properties_close().

Deprecated:

Please start using mlt_properties_parse_yaml().

Parameters

filename

the absolute file name

Returns

a new properties object

mlt_properties_lock()

void mlt_properties_lock

(

mlt_properties

self

)

Protect a properties list against concurrent access.

Parameters

self	a properties list

mlt_properties_mirror()

void mlt_properties_mirror	(	mlt_properties	self,
		mlt_properties	that
	)

Set a properties list to be a mirror copy of another.

Note that this does not copy all existing properties. Rather, you must call this before setting the properties that you wish to copy.

Parameters

that	the properties which will receive copies of the properties as they are set.
self	the properties to mirror

mlt_properties_new()

mlt_properties mlt_properties_new

(

)

Create a properties object.

This allocates the properties structure and calls mlt_properties_init() on it. Free the properties object with mlt_properties_close().

Returns

a new properties object

mlt_properties_parse()

int mlt_properties_parse	(	mlt_properties	self,
		const char *	namevalue
	)

Set a value by parsing a name=value string.

Parameters

self	a properties list
namevalue	a string containing name and value delimited by '='

Returns

true if there was an error

mlt_properties_parse_yaml()

mlt_properties mlt_properties_parse_yaml

(

const char *

filename

)

Parse a YAML Tiny file by name.

Parameters

filename

the name of a text file containing YAML Tiny

Returns

a new properties list

mlt_properties_pass()

int mlt_properties_pass	(	mlt_properties	self,
		mlt_properties	that,
		const char *	prefix
	)

Pass all serializable properties that match a prefix to another properties object.

Warning

The prefix is stripped from the name when it is set on the self properties list! For example a property named "foo.bar" will match prefix "foo.", but the property will be named simply "bar" on the receiving properties object.

Parameters

self	the properties to copy to
that	The properties to copy from
prefix	the property names to match (required)

Returns

true if error

mlt_properties_pass_list()

int mlt_properties_pass_list	(	mlt_properties	self,
		mlt_properties	that,
		const char *	list
	)

Copy all properties specified in a comma-separated list to another properties list.

White space is also a delimiter.

Author

Zach zacha.nosp@m.ry.d.nosp@m.rew@g.nosp@m.mail.nosp@m..com

Parameters

self	the properties to copy to
that	the properties to copy from
list	a delimited list of property names

Returns

true if error

mlt_properties_pass_property()

void mlt_properties_pass_property	(	mlt_properties	self,
		mlt_properties	that,
		const char *	name
	)

Copy a property to another properties list.

Author

Zach zacha.nosp@m.ry.d.nosp@m.rew@g.nosp@m.mail.nosp@m..com

Parameters

self	the properties to copy to
that	the properties to copy from
name	the name of the property to copy

mlt_properties_preset()

int mlt_properties_preset	(	mlt_properties	self,
		const char *	name
	)

Set properties from a preset.

Presets are typically installed to $prefix/share/mlt/presets/{type}/{service}/[{profile}/]{name}. For example, "/usr/share/mlt/presets/consumer/avformat/dv_ntsc_wide/DVD" could be an encoding preset for a widescreen NTSC DVD Video. Do not specify the type and service in the preset name parameter; these are inferred automatically from the service to which you are applying the preset. Using the example above and assuming you are calling this function on the avformat consumer, the name passed to the function should simply be DVD. Note that the profile portion of the path is optional, but a profile-specific preset with the same name as a more generic one is given a higher priority.

Todo:

Look in a user-specific location - somewhere in the home directory.

Parameters

self	a properties list
name	the name of a preset in a well-known location or the explicit path

Returns

true if error

mlt_properties_ref_count()

int mlt_properties_ref_count

(

mlt_properties

self

)

Get the reference count.

Parameters

self	a properties list

Returns

the current reference count

mlt_properties_rename()

int mlt_properties_rename	(	mlt_properties	self,
		const char *	source,
		const char *	dest
	)

Rename a property.

Parameters

self	a properties list
source	the property to rename
dest	the new name

Returns

true if the name is already in use

mlt_properties_save()

int mlt_properties_save	(	mlt_properties	self,
		const char *	filename
	)

Save the properties to a file by name.

This uses the dump format - one line per property.

Parameters

self	a properties list
filename	the name of a file to create or overwrite

Returns

true if there was an error

mlt_properties_serialise_yaml()

char * mlt_properties_serialise_yaml

(

mlt_properties

self

)

Serialize a properties list as a string of YAML Tiny.

The caller MUST free the returned string! This operates on properties containing properties as a hierarchical data structure.

Parameters

self	a properties list

Returns

a string containing YAML Tiny that represents the properties list

mlt_properties_set()

int mlt_properties_set	(	mlt_properties	self,
		const char *	name,
		const char *	value
	)

Set a property to a string.

The property name "properties" is reserved to load the preset in value. When the value begins with '@' then it is interpreted as a very simple math expression containing only the +, -, *, and / operators. The event "property-changed" is fired after the property has been set.

This makes a copy of the string value you supply.

Parameters

self	a properties list
name	the property to set
value	the property's new value

Returns

true if error

mlt_properties_set_color()

int mlt_properties_set_color	(	mlt_properties	self,
		const char *	name,
		mlt_color	color
	)

Set a property to an integer value by color.

Parameters

self	a properties list
name	the property to set
color	the color

Returns

true if error

mlt_properties_set_data()

int mlt_properties_set_data	(	mlt_properties	self,
		const char *	name,
		void *	value,
		int	length,
		mlt_destructor	destroy,
		mlt_serialiser	serialise
	)

Store binary data as a property.

Parameters

self	a properties list
name	the property to set
value	an opaque pointer to binary data
length	the size of the binary data in bytes (optional)
destroy	a function to deallocate the binary data when the property is closed (optional)
serialise	a function that can serialize the binary data as text (optional)

Returns

true if error

mlt_properties_set_double()

int mlt_properties_set_double	(	mlt_properties	self,
		const char *	name,
		double	value
	)

Set a property to a floating point value.

Parameters

self	a properties list
name	the property to set
value	the floating point value

Returns

true if error

mlt_properties_set_int()

int mlt_properties_set_int	(	mlt_properties	self,
		const char *	name,
		int	value
	)

Set a property to an integer value.

Parameters

self	a properties list
name	the property to set
value	the integer

Returns

true if error

mlt_properties_set_int64()

int mlt_properties_set_int64	(	mlt_properties	self,
		const char *	name,
		int64_t	value
	)

Set a property to a 64-bit integer value.

Parameters

self	a properties list
name	the property to set
value	the integer

Returns

true if error

mlt_properties_set_lcnumeric()

int mlt_properties_set_lcnumeric	(	mlt_properties	self,
		const char *	locale
	)

Set the numeric locale used for string/double conversions.

Parameters

self	a properties list
locale	the locale name

Returns

true if error

mlt_properties_set_or_default()

int mlt_properties_set_or_default	(	mlt_properties	self,
		const char *	name,
		const char *	value,
		const char *	def
	)

Set or default a property to a string.

This makes a copy of the string value you supply.

Parameters

self	a properties list
name	the property to set
value	the string value to set or NULL to use the default
def	the default string if value is NULL

Returns

true if error

mlt_properties_set_position()

int mlt_properties_set_position	(	mlt_properties	self,
		const char *	name,
		mlt_position	value
	)

Set a property to a position value.

Parameters

self	a properties list
name	the property to get
value	the position

Returns

true if error

mlt_properties_set_properties()

int mlt_properties_set_properties	(	mlt_properties	self,
		const char *	name,
		mlt_properties	properties
	)

Set a property to a nested properties object.

Parameters

self	a properties list
name	the property to get
properties	the properties list to nest into self with name

Returns

true if error

mlt_properties_set_rect()

int mlt_properties_set_rect	(	mlt_properties	self,
		const char *	name,
		mlt_rect	value
	)

Set a property to a rectangle value.

Parameters

self	a properties list
name	the property to set
value	the rectangle

Returns

true if error

mlt_properties_set_string()

int mlt_properties_set_string	(	mlt_properties	self,
		const char *	name,
		const char *	value
	)

Set a property to a string.

Unlike \mlt_properties_set this function does not attempt to interpret an expression. The property name "properties" is reserved to load the preset in value. The event "property-changed" is fired after the property has been set.

This makes a copy of the string value you supply.

Parameters

self	a properties list
name	the property to set
value	the property's new value

Returns

true if error

mlt_properties_time_to_frames()

mlt_position mlt_properties_time_to_frames	(	mlt_properties	self,
		const char *	time
	)

Convert a time string to a frame count.

Parameters

self	a properties list
time	the time string to convert

Returns

a frame count or a negative value if error, e.g. there is no profile

mlt_properties_unlock()

void mlt_properties_unlock

(

mlt_properties

self

)

End protecting a properties list against concurrent access.

Parameters

self	a properties list

serialise_yaml()

static void serialise_yaml ( mlt_properties  self, strbuf  output, int  indent, int  is_parent_sequence  )

private

Recursively serialize a properties list into a string buffer as YAML Tiny.

Parameters

self	a properties list
output	a string buffer to hold the serialized YAML Tiny
indent	the number of spaces to indent (for recursion, initialize to 0)
is_parent_sequence	Is this properties list really just a sequence (for recursion, initialize to 0)?

Field Documentation

child

void* mlt_properties_s::child

private

the object of a subclass

close

mlt_destructor mlt_properties_s::close

the destructor virtual function

close_object

void* mlt_properties_s::close_object

the object supplied to the close virtual function

local

void* mlt_properties_s::local

private

instance object

---

The documentation for this struct was generated from the following files:

• mlt_properties.h
• mlt_properties.c
