Tractor class. More...

#include <mlt_tractor.h>

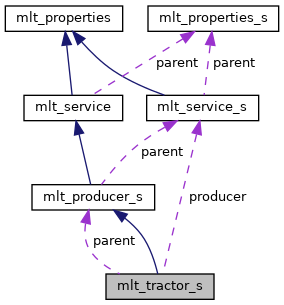

Inheritance diagram for mlt_tractor_s:

Public Member Functions
void	mlt_tractor_close (mlt_tractor self)
	Close the tractor and free its resources. More...

int	mlt_tractor_connect (mlt_tractor self, mlt_service producer)
	Connect the tractor. More...

mlt_field	mlt_tractor_field (mlt_tractor self)
	Get the field self tractor is harvesting. More...

mlt_producer	mlt_tractor_get_track (mlt_tractor self, int index)
	Get the producer for a specific track. More...

mlt_tractor	mlt_tractor_init ()
	Construct a tractor without a field or multitrack. More...

int	mlt_tractor_insert_track (mlt_tractor self, mlt_producer producer, int index)
	Insert a producer before a specific track. More...

mlt_multitrack	mlt_tractor_multitrack (mlt_tractor self)
	Get the multitrack a tractor is pulling. More...

mlt_tractor	mlt_tractor_new ()
	Construct a tractor as well as a field and multitrack. More...

mlt_producer	mlt_tractor_producer (mlt_tractor self)
	Get the producer object associated to the tractor. More...

mlt_properties	mlt_tractor_properties (mlt_tractor self)
	Get the properties object associated to the tractor. More...

void	mlt_tractor_refresh (mlt_tractor self)
	Ensure the tractors in/out points match the multitrack. More...

int	mlt_tractor_remove_track (mlt_tractor self, int index)
	Remove a track by its index. More...

mlt_service	mlt_tractor_service (mlt_tractor self)
	Get the service object associated to the tractor. More...

int	mlt_tractor_set_track (mlt_tractor self, mlt_producer producer, int index)
	Set the producer for a specific track. More...

Public Member Functions inherited from mlt_producer_s
int	mlt_producer_attach (mlt_producer self, mlt_filter filter)
	Attach a filter. More...

int	mlt_producer_clear (mlt_producer self)
	Physically reduce the producer (typically a cut) to a 0 length. More...

void	mlt_producer_close (mlt_producer self)
	Close the producer. More...

mlt_producer	mlt_producer_cut (mlt_producer self, int in, int out)
	Create a cut of this producer. More...

mlt_producer	mlt_producer_cut_parent (mlt_producer self)
	Obtain the parent producer. More...

int	mlt_producer_detach (mlt_producer self, mlt_filter filter)
	Detach a filter. More...

mlt_filter	mlt_producer_filter (mlt_producer self, int index)
	Retrieve a filter. More...

mlt_position	mlt_producer_frame (mlt_producer self)
	Get the current position (relative to start of producer). More...

char *	mlt_producer_frame_time (mlt_producer self, mlt_time_format format)
	Get the current position (relative to start of producer) as a time string. More...

int64_t	mlt_producer_get_creation_time (mlt_producer self)
	Get the creation time for the producer. More...

double	mlt_producer_get_fps (mlt_producer self)
	Get the frames per second. More...

mlt_position	mlt_producer_get_in (mlt_producer self)
	Get the in point. More...

mlt_position	mlt_producer_get_length (mlt_producer self)
	Get the total, unedited length of the producer. More...

char *	mlt_producer_get_length_time (mlt_producer self, mlt_time_format format)
	Get the total, unedited length of the producer as a time string. More...

mlt_position	mlt_producer_get_out (mlt_producer self)
	Get the out point. More...

mlt_position	mlt_producer_get_playtime (mlt_producer self)
	Get the total play time. More...

double	mlt_producer_get_speed (mlt_producer self)
	Get the playing speed. More...

int	mlt_producer_init (mlt_producer self, void *child)
	Initialize a producer service. More...

int	mlt_producer_is_blank (mlt_producer self)
	Determine if the producer is a blank. More...

int	mlt_producer_is_cut (mlt_producer self)
	Determine if producer is a cut. More...

int	mlt_producer_is_mix (mlt_producer self)
	Determine if producer is a mix. More...

mlt_producer	mlt_producer_new (mlt_profile profile)
	Create and initialize a new producer. More...

int	mlt_producer_optimise (mlt_producer self)
	Optimise for overlapping cuts from the same clip. More...

mlt_position	mlt_producer_position (mlt_producer self)
	Get the current position (relative to in point). More...

void	mlt_producer_prepare_next (mlt_producer self)
	Prepare for next frame. More...

int	mlt_producer_probe (mlt_producer self)
	Probe the producer to publish metadata properties. More...

mlt_properties	mlt_producer_properties (mlt_producer self)
	Get the producer properties. More...

int	mlt_producer_seek (mlt_producer self, mlt_position position)
	Seek to a specified position. More...

int	mlt_producer_seek_time (mlt_producer self, const char *time)
	Seek to a specified time string. More...

mlt_service	mlt_producer_service (mlt_producer self)
	Get the parent service object. More...

void	mlt_producer_set_creation_time (mlt_producer self, int64_t creation_time)
	Set the creation time for the producer. More...

int	mlt_producer_set_in_and_out (mlt_producer self, mlt_position in, mlt_position out)
	Set the in and out points. More...

int	mlt_producer_set_speed (mlt_producer self, double speed)
	Set the playing speed. More...

Public Member Functions inherited from mlt_service_s
void	mlt_service_apply_filters (mlt_service self, mlt_frame frame, int index)
	Recursively apply attached filters. More...

int	mlt_service_attach (mlt_service self, mlt_filter filter)
	Attach a filter. More...

mlt_cache_item	mlt_service_cache_get (mlt_service self, const char *name)
	Get an object from a service's cache. More...

int	mlt_service_cache_get_size (mlt_service self, const char *name)
	Get the current maximum size of the named cache. More...

void	mlt_service_cache_put (mlt_service self, const char name, void data, int size, mlt_destructor destructor)
	Put an object into a service's cache. More...

void	mlt_service_cache_set_size (mlt_service self, const char *name, int size)
	Set the number of items to cache for the named cache. More...

void	mlt_service_close (mlt_service self)
	Destroy a service. More...

int	mlt_service_connect_producer (mlt_service self, mlt_service producer, int index)
	Connect a producer to the service. More...

mlt_service	mlt_service_consumer (mlt_service self)
	Obtain the consumer a service is connected to. More...

int	mlt_service_detach (mlt_service self, mlt_filter filter)
	Detach a filter. More...

int	mlt_service_disconnect_all_producers (mlt_service self)
	Remove the all the attached producers. More...

int	mlt_service_disconnect_producer (mlt_service self, int index)
	Remove the N-th producer. More...

mlt_filter	mlt_service_filter (mlt_service self, int index)
	Retrieve an attached filter. More...

int	mlt_service_filter_count (mlt_service self)
	Get the number of filters attached. More...

int	mlt_service_get_frame (mlt_service self, mlt_frame_ptr frame, int index)
	Obtain a frame. More...

mlt_service	mlt_service_get_producer (mlt_service self)
	Get the first connected producer. More...

mlt_service_type	mlt_service_identify (mlt_service self)
	Identify the subclass of the service. More...

int	mlt_service_init (mlt_service self, void *child)
	Initialize a service. More...

int	mlt_service_insert_producer (mlt_service self, mlt_service producer, int index)
	Insert a producer connected to the service. More...

void	mlt_service_lock (mlt_service self)
	Acquire a mutual exclusion lock on this service. More...

int	mlt_service_move_filter (mlt_service self, int from, int to)
	Reorder the attached filters. More...

mlt_service	mlt_service_producer (mlt_service self)
	Obtain the producer a service is connected to. More...

mlt_profile	mlt_service_profile (mlt_service self)
	Retrieve the profile. More...

mlt_properties	mlt_service_properties (mlt_service self)
	Return the properties object. More...

void	mlt_service_set_profile (mlt_service self, mlt_profile profile)
	Set the profile for a service. More...

void	mlt_service_unlock (mlt_service self)
	Release a mutual exclusion lock on this service. More...

Public Member Functions inherited from mlt_properties_s
char *	mlt_properties_anim_get (mlt_properties self, const char *name, int position, int length)
	Get a string value by name at a frame position. More...

mlt_color	mlt_properties_anim_get_color (mlt_properties self, const char *name, int position, int length)
	Get a color associated to the name at a frame position. More...

double	mlt_properties_anim_get_double (mlt_properties self, const char *name, int position, int length)
	Get a real number associated to the name at a frame position. More...

int	mlt_properties_anim_get_int (mlt_properties self, const char *name, int position, int length)
	Get an integer associated to the name at a frame position. More...

mlt_rect	mlt_properties_anim_get_rect (mlt_properties self, const char *name, int position, int length)
	Get a rectangle associated to the name at a frame position. More...

int	mlt_properties_anim_set (mlt_properties self, const char name, const char value, int position, int length)
	Set a property to a string at a frame position. More...

int	mlt_properties_anim_set_color (mlt_properties self, const char *name, mlt_color value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value by color at a frame position. More...

int	mlt_properties_anim_set_double (mlt_properties self, const char *name, double value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a real number at a frame position. More...

int	mlt_properties_anim_set_int (mlt_properties self, const char *name, int value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value at a frame position. More...

int	mlt_properties_anim_set_rect (mlt_properties self, const char *name, mlt_rect value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a rectangle value at a frame position. More...

void	mlt_properties_clear (mlt_properties self, const char *name)
	Remove the value for a property. More...

void	mlt_properties_close (mlt_properties self)
	Close a properties object. More...

int	mlt_properties_copy (mlt_properties self, mlt_properties that, const char *prefix)
	Copy all serializable properties that match a prefix to another properties object. More...

int	mlt_properties_count (mlt_properties self)
	Return the number of items in the list. More...

void	mlt_properties_debug (mlt_properties self, const char title, FILE output)
	Output the properties to a file handle. More...

int	mlt_properties_dec_ref (mlt_properties self)
	Decrement the reference count. More...

int	mlt_properties_dir_list (mlt_properties self, const char dirname, const char pattern, int sort)
	Get the contents of a directory. More...

void	mlt_properties_dump (mlt_properties self, FILE *output)
	Dump the properties to a file handle. More...

int	mlt_properties_exists (mlt_properties self, const char *name)
	Check if a property exists. More...

char *	mlt_properties_frames_to_time (mlt_properties self, mlt_position frames, mlt_time_format format)
	Convert a frame count to a time string. More...

int	mlt_properties_from_utf8 (mlt_properties properties, const char name_from, const char name_to)
	Convert UTF-8 property to the locale-defined encoding. More...

char *	mlt_properties_get (mlt_properties self, const char *name)
	Get a string value by name. More...

mlt_animation	mlt_properties_get_animation (mlt_properties self, const char *name)
	Get the animation associated to the name. More...

mlt_color	mlt_properties_get_color (mlt_properties self, const char *name)
	Convert a numeric property to a tuple of color components. More...

void *	mlt_properties_get_data (mlt_properties self, const char name, int length)
	Get a binary data value associated to the name. More...

void *	mlt_properties_get_data_at (mlt_properties self, int index, int *size)
	Get a data value by index. More...

double	mlt_properties_get_double (mlt_properties self, const char *name)
	Get a floating point value associated to the name. More...

int	mlt_properties_get_int (mlt_properties self, const char *name)
	Get an integer associated to the name. More...

int64_t	mlt_properties_get_int64 (mlt_properties self, const char *name)
	Get a 64-bit integer associated to the name. More...

const char *	mlt_properties_get_lcnumeric (mlt_properties self)
	Get the numeric locale for this properties object. More...

char *	mlt_properties_get_name (mlt_properties self, int index)
	Get a property name by index. More...

mlt_position	mlt_properties_get_position (mlt_properties self, const char *name)
	Get a position value associated to the name. More...

mlt_properties	mlt_properties_get_properties (mlt_properties self, const char *name)
	Get a nested properties object by name. More...

mlt_properties	mlt_properties_get_properties_at (mlt_properties self, int index)
	Get a nested properties object by index. More...

mlt_rect	mlt_properties_get_rect (mlt_properties self, const char *name)
	Get a rectangle associated to the name. More...

char *	mlt_properties_get_time (mlt_properties self, const char *name, mlt_time_format format)
	Get a time string associated to the name. More...

char *	mlt_properties_get_value (mlt_properties self, int index)
	Get a property's string value by index. More...

char *	mlt_properties_get_value_tf (mlt_properties self, int index, mlt_time_format time_format)
	Get a property's string value by index (with time format). More...

int	mlt_properties_inc_ref (mlt_properties self)
	Increment the reference count. More...

int	mlt_properties_inherit (mlt_properties self, mlt_properties that)
	Copy all serializable properties to another properties list. More...

int	mlt_properties_init (mlt_properties self, void *child)
	Initialize a properties object that was already allocated. More...

int	mlt_properties_is_anim (mlt_properties self, const char *name)
	Check if a property is animated. More...

int	mlt_properties_is_sequence (mlt_properties properties)
	Determine if the properties list is really just a sequence or ordered list. More...

mlt_properties	mlt_properties_load (const char *filename)
	Create a properties object by reading a .properties text file. More...

void	mlt_properties_lock (mlt_properties self)
	Protect a properties list against concurrent access. More...

void	mlt_properties_mirror (mlt_properties self, mlt_properties that)
	Set a properties list to be a mirror copy of another. More...

mlt_properties	mlt_properties_new ()
	Create a properties object. More...

int	mlt_properties_parse (mlt_properties self, const char *namevalue)
	Set a value by parsing a name=value string. More...

mlt_properties	mlt_properties_parse_yaml (const char *filename)
	Parse a YAML Tiny file by name. More...

int	mlt_properties_pass (mlt_properties self, mlt_properties that, const char *prefix)
	Pass all serializable properties that match a prefix to another properties object. More...

int	mlt_properties_pass_list (mlt_properties self, mlt_properties that, const char *list)
	Copy all properties specified in a comma-separated list to another properties list. More...

void	mlt_properties_pass_property (mlt_properties self, mlt_properties that, const char *name)
	Copy a property to another properties list. More...

int	mlt_properties_preset (mlt_properties self, const char *name)
	Set properties from a preset. More...

int	mlt_properties_ref_count (mlt_properties self)
	Get the reference count. More...

int	mlt_properties_rename (mlt_properties self, const char source, const char dest)
	Rename a property. More...

int	mlt_properties_save (mlt_properties self, const char *filename)
	Save the properties to a file by name. More...

char *	mlt_properties_serialise_yaml (mlt_properties self)
	Serialize a properties list as a string of YAML Tiny. More...

int	mlt_properties_set (mlt_properties self, const char name, const char value)
	Set a property to a string. More...

int	mlt_properties_set_color (mlt_properties self, const char *name, mlt_color color)
	Set a property to an integer value by color. More...

int	mlt_properties_set_data (mlt_properties self, const char name, void value, int length, mlt_destructor destroy, mlt_serialiser serialise)
	Store binary data as a property. More...

int	mlt_properties_set_double (mlt_properties self, const char *name, double value)
	Set a property to a floating point value. More...

int	mlt_properties_set_int (mlt_properties self, const char *name, int value)
	Set a property to an integer value. More...

int	mlt_properties_set_int64 (mlt_properties self, const char *name, int64_t value)
	Set a property to a 64-bit integer value. More...

int	mlt_properties_set_lcnumeric (mlt_properties self, const char *locale)
	Set the numeric locale used for string/double conversions. More...

int	mlt_properties_set_or_default (mlt_properties self, const char name, const char value, const char *def)
	Set or default a property to a string. More...

int	mlt_properties_set_position (mlt_properties self, const char *name, mlt_position value)
	Set a property to a position value. More...

int	mlt_properties_set_properties (mlt_properties self, const char *name, mlt_properties properties)
	Set a property to a nested properties object. More...

int	mlt_properties_set_rect (mlt_properties self, const char *name, mlt_rect value)
	Set a property to a rectangle value. More...

int	mlt_properties_set_string (mlt_properties self, const char name, const char value)
	Set a property to a string. More...

mlt_position	mlt_properties_time_to_frames (mlt_properties self, const char *time)
	Convert a time string to a frame count. More...

void	mlt_properties_unlock (mlt_properties self)
	End protecting a properties list against concurrent access. More...

Data Fields
struct mlt_producer_s	parent

mlt_service	producer

Data Fields inherited from mlt_producer_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

int(*	get_frame )(mlt_producer, mlt_frame_ptr, int)
	Get a frame of data (virtual function). More...

struct mlt_service_s	parent
	A producer is a service. More...

int(*	seek )(mlt_producer, mlt_position)
	Seek to a specified position (virtual function). More...

int(*	set_in_and_out )(mlt_producer, mlt_position, mlt_position)
	Set the in and out points. More...

Data Fields inherited from mlt_service_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

int(*	get_frame )(mlt_service self, mlt_frame_ptr frame, int index)
	Get a frame of data (virtual function). More...

Data Fields inherited from mlt_properties_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

Private Member Functions
static int	producer_get_frame (mlt_producer parent, mlt_frame_ptr frame, int track)
	Get the next frame. More...

Detailed Description

Tractor class.

The tractor is a convenience class that works with the field class to manage a multitrack, track filters, and transitions.

Property:

multitrack holds a reference to the mulitrack object that a tractor manages

field holds a reference to the field object that a tractor manages

producer holds a reference to an encapsulated producer

Member Function Documentation

◆ mlt_tractor_close()

void mlt_tractor_close ( mlt_tractor self )

Close the tractor and free its resources.

Parameters

self a tractor

◆ mlt_tractor_connect()

int mlt_tractor_connect	(	mlt_tractor	self,
		mlt_service	producer
	)

Connect the tractor.

Parameters

self	a tractor
producer	a producer

Returns: true on error

◆ mlt_tractor_field()

mlt_field mlt_tractor_field ( mlt_tractor self )

Get the field self tractor is harvesting.

Parameters

self a tractor

Returns: a field or NULL if there is no field for this tractor

◆ mlt_tractor_get_track()

mlt_producer mlt_tractor_get_track	(	mlt_tractor	self,
		int	index
	)

Get the producer for a specific track.

Parameters

self	a tractor
index	the 0-based track index

Returns: the producer for track index

◆ mlt_tractor_init()

mlt_tractor mlt_tractor_init ( )

Construct a tractor without a field or multitrack.

Sets the resource property to "<tractor>", the mlt_type to "mlt_producer", and mlt_service to "tractor".

Returns: the new tractor

◆ mlt_tractor_insert_track()

int mlt_tractor_insert_track	(	mlt_tractor	self,
		mlt_producer	producer,
		int	index
	)

Insert a producer before a specific track.

This also adjusts the track indices on mlt_transition_s and mlt_filter_s,

Parameters

self	a tractor
producer	a producer
index	the 0-based track index

Returns: true on error

◆ mlt_tractor_multitrack()

mlt_multitrack mlt_tractor_multitrack ( mlt_tractor self )

Get the multitrack a tractor is pulling.

Parameters

self a tractor

Returns: a multitrack or NULL if there is none

◆ mlt_tractor_new()

mlt_tractor mlt_tractor_new ( )

Construct a tractor as well as a field and multitrack.

Sets the resource property to "<tractor>", the mlt_type to "mlt_producer", and mlt_service to "tractor".

Returns: the new tractor

◆ mlt_tractor_producer()

mlt_producer mlt_tractor_producer ( mlt_tractor self )

Get the producer object associated to the tractor.

Parameters

self a tractor

Returns: the parent producer object

See also: MLT_TRACTOR_PRODUCER

◆ mlt_tractor_properties()

mlt_properties mlt_tractor_properties ( mlt_tractor self )

Get the properties object associated to the tractor.

Parameters

self a tractor

Returns: the tractor's property list

See also: MLT_TRACTOR_PROPERTIES

◆ mlt_tractor_refresh()

void mlt_tractor_refresh ( mlt_tractor self )

Ensure the tractors in/out points match the multitrack.

Parameters

self a tractor

◆ mlt_tractor_remove_track()

int mlt_tractor_remove_track	(	mlt_tractor	self,
		int	index
	)

Remove a track by its index.

Parameters

self	a tractor
index	the 0-based track index

Returns: true on error

◆ mlt_tractor_service()

mlt_service mlt_tractor_service ( mlt_tractor self )

Get the service object associated to the tractor.

Parameters

self a tractor

Returns: the parent service object

See also: MLT_TRACTOR_SERVICE

◆ mlt_tractor_set_track()

int mlt_tractor_set_track	(	mlt_tractor	self,
		mlt_producer	producer,
		int	index
	)

Set the producer for a specific track.

Parameters

self	a tractor
producer	a producer
index	the 0-based track index

Returns: true on error

◆ producer_get_frame()

static int producer_get_frame	(	mlt_producer	parent,
		mlt_frame_ptr	frame,
		int	track
	)

private

Get the next frame.

Parameters

	parent	the producer interface to the tractor
[out]	frame	a frame by reference
	track	the 0-based track index

Returns: true on error

Field Documentation

◆ parent

struct mlt_producer_s mlt_tractor_s::parent

◆ producer

mlt_service mlt_tractor_s::producer

The documentation for this struct was generated from the following files:

Public Member Functions

Data Fields

Private Member Functions

Detailed Description

Member Function Documentation

◆ mlt_tractor_close()

◆ mlt_tractor_connect()

◆ mlt_tractor_field()

◆ mlt_tractor_get_track()

◆ mlt_tractor_init()

◆ mlt_tractor_insert_track()

◆ mlt_tractor_multitrack()

◆ mlt_tractor_new()

◆ mlt_tractor_producer()

◆ mlt_tractor_properties()

◆ mlt_tractor_refresh()

◆ mlt_tractor_remove_track()

◆ mlt_tractor_service()

◆ mlt_tractor_set_track()

◆ producer_get_frame()

Field Documentation

◆ parent

◆ producer
