Link class. More...

#include <mlt_link.h>

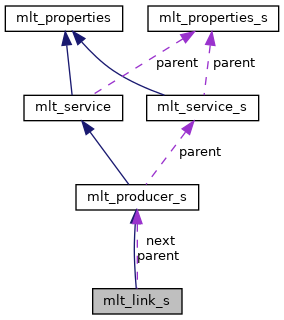

Inheritance diagram for mlt_link_s:

Public Member Functions
void	mlt_link_close (mlt_link self)
	Close the link and free its resources. More...

int	mlt_link_connect_next (mlt_link self, mlt_producer next, mlt_profile chain_profile)
	Connect this link to the next producer. More...

mlt_link	mlt_link_filter_init (mlt_profile profile, mlt_service_type type, const char id, char arg)
	Construct a link as a wrapper for the specified filter. More...

mlt_properties	mlt_link_filter_metadata (mlt_service_type type, const char id, void data)
	Get the metadata about a link that is wrapping a filter. More...

mlt_link	mlt_link_init ()
	Construct a link. More...

Public Member Functions inherited from mlt_producer_s
int	mlt_producer_attach (mlt_producer self, mlt_filter filter)
	Attach a filter. More...

int	mlt_producer_clear (mlt_producer self)
	Physically reduce the producer (typically a cut) to a 0 length. More...

void	mlt_producer_close (mlt_producer self)
	Close the producer. More...

mlt_producer	mlt_producer_cut (mlt_producer self, int in, int out)
	Create a cut of this producer. More...

mlt_producer	mlt_producer_cut_parent (mlt_producer self)
	Obtain the parent producer. More...

int	mlt_producer_detach (mlt_producer self, mlt_filter filter)
	Detach a filter. More...

mlt_filter	mlt_producer_filter (mlt_producer self, int index)
	Retrieve a filter. More...

mlt_position	mlt_producer_frame (mlt_producer self)
	Get the current position (relative to start of producer). More...

char *	mlt_producer_frame_time (mlt_producer self, mlt_time_format format)
	Get the current position (relative to start of producer) as a time string. More...

int64_t	mlt_producer_get_creation_time (mlt_producer self)
	Get the creation time for the producer. More...

double	mlt_producer_get_fps (mlt_producer self)
	Get the frames per second. More...

mlt_position	mlt_producer_get_in (mlt_producer self)
	Get the in point. More...

mlt_position	mlt_producer_get_length (mlt_producer self)
	Get the total, unedited length of the producer. More...

char *	mlt_producer_get_length_time (mlt_producer self, mlt_time_format format)
	Get the total, unedited length of the producer as a time string. More...

mlt_position	mlt_producer_get_out (mlt_producer self)
	Get the out point. More...

mlt_position	mlt_producer_get_playtime (mlt_producer self)
	Get the total play time. More...

double	mlt_producer_get_speed (mlt_producer self)
	Get the playing speed. More...

int	mlt_producer_init (mlt_producer self, void *child)
	Initialize a producer service. More...

int	mlt_producer_is_blank (mlt_producer self)
	Determine if the producer is a blank. More...

int	mlt_producer_is_cut (mlt_producer self)
	Determine if producer is a cut. More...

int	mlt_producer_is_mix (mlt_producer self)
	Determine if producer is a mix. More...

mlt_producer	mlt_producer_new (mlt_profile profile)
	Create and initialize a new producer. More...

int	mlt_producer_optimise (mlt_producer self)
	Optimise for overlapping cuts from the same clip. More...

mlt_position	mlt_producer_position (mlt_producer self)
	Get the current position (relative to in point). More...

void	mlt_producer_prepare_next (mlt_producer self)
	Prepare for next frame. More...

int	mlt_producer_probe (mlt_producer self)
	Probe the producer to publish metadata properties. More...

mlt_properties	mlt_producer_properties (mlt_producer self)
	Get the producer properties. More...

int	mlt_producer_seek (mlt_producer self, mlt_position position)
	Seek to a specified position. More...

int	mlt_producer_seek_time (mlt_producer self, const char *time)
	Seek to a specified time string. More...

mlt_service	mlt_producer_service (mlt_producer self)
	Get the parent service object. More...

void	mlt_producer_set_creation_time (mlt_producer self, int64_t creation_time)
	Set the creation time for the producer. More...

int	mlt_producer_set_in_and_out (mlt_producer self, mlt_position in, mlt_position out)
	Set the in and out points. More...

int	mlt_producer_set_speed (mlt_producer self, double speed)
	Set the playing speed. More...

Public Member Functions inherited from mlt_service_s
void	mlt_service_apply_filters (mlt_service self, mlt_frame frame, int index)
	Recursively apply attached filters. More...

int	mlt_service_attach (mlt_service self, mlt_filter filter)
	Attach a filter. More...

mlt_cache_item	mlt_service_cache_get (mlt_service self, const char *name)
	Get an object from a service's cache. More...

int	mlt_service_cache_get_size (mlt_service self, const char *name)
	Get the current maximum size of the named cache. More...

void	mlt_service_cache_put (mlt_service self, const char name, void data, int size, mlt_destructor destructor)
	Put an object into a service's cache. More...

void	mlt_service_cache_set_size (mlt_service self, const char *name, int size)
	Set the number of items to cache for the named cache. More...

void	mlt_service_close (mlt_service self)
	Destroy a service. More...

int	mlt_service_connect_producer (mlt_service self, mlt_service producer, int index)
	Connect a producer to the service. More...

mlt_service	mlt_service_consumer (mlt_service self)
	Obtain the consumer a service is connected to. More...

int	mlt_service_detach (mlt_service self, mlt_filter filter)
	Detach a filter. More...

int	mlt_service_disconnect_all_producers (mlt_service self)
	Remove the all the attached producers. More...

int	mlt_service_disconnect_producer (mlt_service self, int index)
	Remove the N-th producer. More...

mlt_filter	mlt_service_filter (mlt_service self, int index)
	Retrieve an attached filter. More...

int	mlt_service_filter_count (mlt_service self)
	Get the number of filters attached. More...

int	mlt_service_get_frame (mlt_service self, mlt_frame_ptr frame, int index)
	Obtain a frame. More...

mlt_service	mlt_service_get_producer (mlt_service self)
	Get the first connected producer. More...

mlt_service_type	mlt_service_identify (mlt_service self)
	Identify the subclass of the service. More...

int	mlt_service_init (mlt_service self, void *child)
	Initialize a service. More...

int	mlt_service_insert_producer (mlt_service self, mlt_service producer, int index)
	Insert a producer connected to the service. More...

void	mlt_service_lock (mlt_service self)
	Acquire a mutual exclusion lock on this service. More...

int	mlt_service_move_filter (mlt_service self, int from, int to)
	Reorder the attached filters. More...

mlt_service	mlt_service_producer (mlt_service self)
	Obtain the producer a service is connected to. More...

mlt_profile	mlt_service_profile (mlt_service self)
	Retrieve the profile. More...

mlt_properties	mlt_service_properties (mlt_service self)
	Return the properties object. More...

void	mlt_service_set_profile (mlt_service self, mlt_profile profile)
	Set the profile for a service. More...

void	mlt_service_unlock (mlt_service self)
	Release a mutual exclusion lock on this service. More...

Public Member Functions inherited from mlt_properties_s
char *	mlt_properties_anim_get (mlt_properties self, const char *name, int position, int length)
	Get a string value by name at a frame position. More...

mlt_color	mlt_properties_anim_get_color (mlt_properties self, const char *name, int position, int length)
	Get a color associated to the name at a frame position. More...

double	mlt_properties_anim_get_double (mlt_properties self, const char *name, int position, int length)
	Get a real number associated to the name at a frame position. More...

int	mlt_properties_anim_get_int (mlt_properties self, const char *name, int position, int length)
	Get an integer associated to the name at a frame position. More...

mlt_rect	mlt_properties_anim_get_rect (mlt_properties self, const char *name, int position, int length)
	Get a rectangle associated to the name at a frame position. More...

int	mlt_properties_anim_set (mlt_properties self, const char name, const char value, int position, int length)
	Set a property to a string at a frame position. More...

int	mlt_properties_anim_set_color (mlt_properties self, const char *name, mlt_color value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value by color at a frame position. More...

int	mlt_properties_anim_set_double (mlt_properties self, const char *name, double value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a real number at a frame position. More...

int	mlt_properties_anim_set_int (mlt_properties self, const char *name, int value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to an integer value at a frame position. More...

int	mlt_properties_anim_set_rect (mlt_properties self, const char *name, mlt_rect value, int position, int length, mlt_keyframe_type keyframe_type)
	Set a property to a rectangle value at a frame position. More...

void	mlt_properties_clear (mlt_properties self, const char *name)
	Remove the value for a property. More...

void	mlt_properties_close (mlt_properties self)
	Close a properties object. More...

int	mlt_properties_copy (mlt_properties self, mlt_properties that, const char *prefix)
	Copy all serializable properties that match a prefix to another properties object. More...

int	mlt_properties_count (mlt_properties self)
	Return the number of items in the list. More...

void	mlt_properties_debug (mlt_properties self, const char title, FILE output)
	Output the properties to a file handle. More...

int	mlt_properties_dec_ref (mlt_properties self)
	Decrement the reference count. More...

int	mlt_properties_dir_list (mlt_properties self, const char dirname, const char pattern, int sort)
	Get the contents of a directory. More...

void	mlt_properties_dump (mlt_properties self, FILE *output)
	Dump the properties to a file handle. More...

int	mlt_properties_exists (mlt_properties self, const char *name)
	Check if a property exists. More...

char *	mlt_properties_frames_to_time (mlt_properties self, mlt_position frames, mlt_time_format format)
	Convert a frame count to a time string. More...

int	mlt_properties_from_utf8 (mlt_properties properties, const char name_from, const char name_to)
	Convert UTF-8 property to the locale-defined encoding. More...

char *	mlt_properties_get (mlt_properties self, const char *name)
	Get a string value by name. More...

mlt_animation	mlt_properties_get_animation (mlt_properties self, const char *name)
	Get the animation associated to the name. More...

mlt_color	mlt_properties_get_color (mlt_properties self, const char *name)
	Convert a numeric property to a tuple of color components. More...

void *	mlt_properties_get_data (mlt_properties self, const char name, int length)
	Get a binary data value associated to the name. More...

void *	mlt_properties_get_data_at (mlt_properties self, int index, int *size)
	Get a data value by index. More...

double	mlt_properties_get_double (mlt_properties self, const char *name)
	Get a floating point value associated to the name. More...

int	mlt_properties_get_int (mlt_properties self, const char *name)
	Get an integer associated to the name. More...

int64_t	mlt_properties_get_int64 (mlt_properties self, const char *name)
	Get a 64-bit integer associated to the name. More...

const char *	mlt_properties_get_lcnumeric (mlt_properties self)
	Get the numeric locale for this properties object. More...

char *	mlt_properties_get_name (mlt_properties self, int index)
	Get a property name by index. More...

mlt_position	mlt_properties_get_position (mlt_properties self, const char *name)
	Get a position value associated to the name. More...

mlt_properties	mlt_properties_get_properties (mlt_properties self, const char *name)
	Get a nested properties object by name. More...

mlt_properties	mlt_properties_get_properties_at (mlt_properties self, int index)
	Get a nested properties object by index. More...

mlt_rect	mlt_properties_get_rect (mlt_properties self, const char *name)
	Get a rectangle associated to the name. More...

char *	mlt_properties_get_time (mlt_properties self, const char *name, mlt_time_format format)
	Get a time string associated to the name. More...

char *	mlt_properties_get_value (mlt_properties self, int index)
	Get a property's string value by index. More...

char *	mlt_properties_get_value_tf (mlt_properties self, int index, mlt_time_format time_format)
	Get a property's string value by index (with time format). More...

int	mlt_properties_inc_ref (mlt_properties self)
	Increment the reference count. More...

int	mlt_properties_inherit (mlt_properties self, mlt_properties that)
	Copy all serializable properties to another properties list. More...

int	mlt_properties_init (mlt_properties self, void *child)
	Initialize a properties object that was already allocated. More...

int	mlt_properties_is_anim (mlt_properties self, const char *name)
	Check if a property is animated. More...

int	mlt_properties_is_sequence (mlt_properties properties)
	Determine if the properties list is really just a sequence or ordered list. More...

mlt_properties	mlt_properties_load (const char *filename)
	Create a properties object by reading a .properties text file. More...

void	mlt_properties_lock (mlt_properties self)
	Protect a properties list against concurrent access. More...

void	mlt_properties_mirror (mlt_properties self, mlt_properties that)
	Set a properties list to be a mirror copy of another. More...

mlt_properties	mlt_properties_new ()
	Create a properties object. More...

int	mlt_properties_parse (mlt_properties self, const char *namevalue)
	Set a value by parsing a name=value string. More...

mlt_properties	mlt_properties_parse_yaml (const char *filename)
	Parse a YAML Tiny file by name. More...

int	mlt_properties_pass (mlt_properties self, mlt_properties that, const char *prefix)
	Pass all serializable properties that match a prefix to another properties object. More...

int	mlt_properties_pass_list (mlt_properties self, mlt_properties that, const char *list)
	Copy all properties specified in a comma-separated list to another properties list. More...

void	mlt_properties_pass_property (mlt_properties self, mlt_properties that, const char *name)
	Copy a property to another properties list. More...

int	mlt_properties_preset (mlt_properties self, const char *name)
	Set properties from a preset. More...

int	mlt_properties_ref_count (mlt_properties self)
	Get the reference count. More...

int	mlt_properties_rename (mlt_properties self, const char source, const char dest)
	Rename a property. More...

int	mlt_properties_save (mlt_properties self, const char *filename)
	Save the properties to a file by name. More...

char *	mlt_properties_serialise_yaml (mlt_properties self)
	Serialize a properties list as a string of YAML Tiny. More...

int	mlt_properties_set (mlt_properties self, const char name, const char value)
	Set a property to a string. More...

int	mlt_properties_set_color (mlt_properties self, const char *name, mlt_color color)
	Set a property to an integer value by color. More...

int	mlt_properties_set_data (mlt_properties self, const char name, void value, int length, mlt_destructor destroy, mlt_serialiser serialise)
	Store binary data as a property. More...

int	mlt_properties_set_double (mlt_properties self, const char *name, double value)
	Set a property to a floating point value. More...

int	mlt_properties_set_int (mlt_properties self, const char *name, int value)
	Set a property to an integer value. More...

int	mlt_properties_set_int64 (mlt_properties self, const char *name, int64_t value)
	Set a property to a 64-bit integer value. More...

int	mlt_properties_set_lcnumeric (mlt_properties self, const char *locale)
	Set the numeric locale used for string/double conversions. More...

int	mlt_properties_set_or_default (mlt_properties self, const char name, const char value, const char *def)
	Set or default a property to a string. More...

int	mlt_properties_set_position (mlt_properties self, const char *name, mlt_position value)
	Set a property to a position value. More...

int	mlt_properties_set_properties (mlt_properties self, const char *name, mlt_properties properties)
	Set a property to a nested properties object. More...

int	mlt_properties_set_rect (mlt_properties self, const char *name, mlt_rect value)
	Set a property to a rectangle value. More...

int	mlt_properties_set_string (mlt_properties self, const char name, const char value)
	Set a property to a string. More...

mlt_position	mlt_properties_time_to_frames (mlt_properties self, const char *time)
	Convert a time string to a frame count. More...

void	mlt_properties_unlock (mlt_properties self)
	End protecting a properties list against concurrent access. More...

Data Fields
struct mlt_producer_s	parent

Data Fields inherited from mlt_producer_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

int(*	get_frame )(mlt_producer, mlt_frame_ptr, int)
	Get a frame of data (virtual function). More...

struct mlt_service_s	parent
	A producer is a service. More...

int(*	seek )(mlt_producer, mlt_position)
	Seek to a specified position (virtual function). More...

int(*	set_in_and_out )(mlt_producer, mlt_position, mlt_position)
	Set the in and out points. More...

Data Fields inherited from mlt_service_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

int(*	get_frame )(mlt_service self, mlt_frame_ptr frame, int index)
	Get a frame of data (virtual function). More...

Data Fields inherited from mlt_properties_s
mlt_destructor	close
	the destructor virtual function More...

void *	close_object
	the object supplied to the close virtual function More...

Protected Attributes
void(*	close )(mlt_link)
	Virtual close function. More...

void(*	configure )(mlt_link, mlt_profile)
	Configure the link (virtual function). More...

int(*	get_frame )(mlt_link, mlt_frame_ptr, int)
	Get a frame of data (virtual function). More...

Private Attributes
void *	child
	the object of a subclass More...

mlt_producer	next

Detailed Description

Link class.

The link is a producer class that that can be connected to other link producers in a Chain.

Property:: next holds a reference to the next producer in the chain

Member Function Documentation

◆ mlt_link_close()

void mlt_link_close ( mlt_link self )

Close the link and free its resources.

Parameters

self a link

◆ mlt_link_connect_next()

int mlt_link_connect_next	(	mlt_link	self,
		mlt_producer	next,
		mlt_profile	chain_profile
	)

Connect this link to the next producer.

Parameters

self	a link
next	the producer to get frames from
chain_profile	a profile to use if needed (some links derive their frame rate from the next producer)

Returns: true on error

◆ mlt_link_filter_init()

mlt_link mlt_link_filter_init	(	mlt_profile	profile,
		mlt_service_type	type,
		const char *	id,
		char *	arg
	)

Construct a link as a wrapper for the specified filter.

The returned link will be the owner of the supplied filter

Returns: the new link

◆ mlt_link_filter_metadata()

mlt_properties mlt_link_filter_metadata	(	mlt_service_type	type,
		const char *	id,
		void *	data
	)

Get the metadata about a link that is wrapping a filter.

Returns NULL if link or its metadata are unavailable.

Parameters

type	this must be mlt_service_type_link
service	the name of the filter that this link is wrapping

Returns: the service metadata as a structured properties list

◆ mlt_link_init()

mlt_link mlt_link_init ( )

Construct a link.

Sets the mlt_type to "link"

Returns: the new link

Field Documentation

◆ child

void* mlt_link_s::child

private

the object of a subclass

◆ close

void(* mlt_link_s::close) (mlt_link)

protected

Virtual close function.

◆ configure

void(* mlt_link_s::configure) (mlt_link, mlt_profile)

protected

Configure the link (virtual function).

Parameters

mlt_link	a link
mlt_profile	a default profile to use

◆ get_frame

int(* mlt_link_s::get_frame) (mlt_link, mlt_frame_ptr, int)

protected

Get a frame of data (virtual function).

Parameters

mlt_link	a link
mlt_frame_ptr	a frame pointer by reference
int	an index

Returns: true if there was an error

◆ next

mlt_producer mlt_link_s::next

private

◆ parent

struct mlt_producer_s mlt_link_s::parent

The documentation for this struct was generated from the following files:

Public Member Functions

Data Fields

Protected Attributes

Private Attributes

Detailed Description

Member Function Documentation

◆ mlt_link_close()

◆ mlt_link_connect_next()

◆ mlt_link_filter_init()

◆ mlt_link_filter_metadata()

◆ mlt_link_init()

Field Documentation

◆ child

◆ close

◆ configure

◆ get_frame

◆ next

◆ parent
