Chain class. More...
#include <mlt_chain.h>

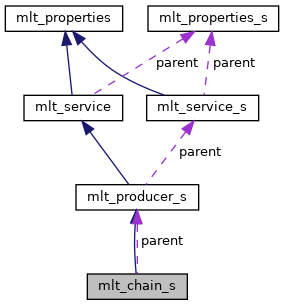

Inheritance diagram for mlt_chain_s:
Public Member Functions | |
| int | mlt_chain_attach (mlt_chain self, mlt_link link) |
| Attach a link. More... | |
| void | mlt_chain_attach_normalizers (mlt_chain self) |
| Attach normalizer links. More... | |
| void | mlt_chain_close (mlt_chain self) |
| Close the chain and free its resources. More... | |
| int | mlt_chain_detach (mlt_chain self, mlt_link link) |
| Detach a link. More... | |
| mlt_producer | mlt_chain_get_source (mlt_chain self) |
| Get the source producer. More... | |
| mlt_chain | mlt_chain_init (mlt_profile profile) |
| Construct a chain. More... | |
| mlt_link | mlt_chain_link (mlt_chain self, int index) |
| Retrieve an attached link. More... | |
| int | mlt_chain_link_count (mlt_chain self) |
| Get the number of links attached. More... | |
| int | mlt_chain_move_link (mlt_chain self, int from, int to) |
| Reorder the attached links. More... | |
| void | mlt_chain_set_source (mlt_chain self, mlt_producer source) |
| Set the source producer. More... | |
 Public Member Functions inherited from mlt_producer_s | |
| int | mlt_producer_attach (mlt_producer self, mlt_filter filter) |
| Attach a filter. More... | |
| int | mlt_producer_clear (mlt_producer self) |
| Physically reduce the producer (typically a cut) to a 0 length. More... | |
| void | mlt_producer_close (mlt_producer self) |
| Close the producer. More... | |
| mlt_producer | mlt_producer_cut (mlt_producer self, int in, int out) |
| Create a cut of this producer. More... | |
| mlt_producer | mlt_producer_cut_parent (mlt_producer self) |
| Obtain the parent producer. More... | |
| int | mlt_producer_detach (mlt_producer self, mlt_filter filter) |
| Detach a filter. More... | |
| mlt_filter | mlt_producer_filter (mlt_producer self, int index) |
| Retrieve a filter. More... | |
| mlt_position | mlt_producer_frame (mlt_producer self) |
| Get the current position (relative to start of producer). More... | |
| char * | mlt_producer_frame_time (mlt_producer self, mlt_time_format format) |
| Get the current position (relative to start of producer) as a time string. More... | |
| int64_t | mlt_producer_get_creation_time (mlt_producer self) |
| Get the creation time for the producer. More... | |
| double | mlt_producer_get_fps (mlt_producer self) |
| Get the frames per second. More... | |
| mlt_position | mlt_producer_get_in (mlt_producer self) |
| Get the in point. More... | |
| mlt_position | mlt_producer_get_length (mlt_producer self) |
| Get the total, unedited length of the producer. More... | |
| char * | mlt_producer_get_length_time (mlt_producer self, mlt_time_format format) |
| Get the total, unedited length of the producer as a time string. More... | |
| mlt_position | mlt_producer_get_out (mlt_producer self) |
| Get the out point. More... | |
| mlt_position | mlt_producer_get_playtime (mlt_producer self) |
| Get the total play time. More... | |
| double | mlt_producer_get_speed (mlt_producer self) |
| Get the playing speed. More... | |
| int | mlt_producer_init (mlt_producer self, void *child) |
| Initialize a producer service. More... | |
| int | mlt_producer_is_blank (mlt_producer self) |
| Determine if the producer is a blank. More... | |
| int | mlt_producer_is_cut (mlt_producer self) |
| Determine if producer is a cut. More... | |
| int | mlt_producer_is_mix (mlt_producer self) |
| Determine if producer is a mix. More... | |
| mlt_producer | mlt_producer_new (mlt_profile profile) |
| Create and initialize a new producer. More... | |
| int | mlt_producer_optimise (mlt_producer self) |
| Optimise for overlapping cuts from the same clip. More... | |
| mlt_position | mlt_producer_position (mlt_producer self) |
| Get the current position (relative to in point). More... | |
| void | mlt_producer_prepare_next (mlt_producer self) |
| Prepare for next frame. More... | |
| int | mlt_producer_probe (mlt_producer self) |
| Probe the producer to publish metadata properties. More... | |
| mlt_properties | mlt_producer_properties (mlt_producer self) |
| Get the producer properties. More... | |
| int | mlt_producer_seek (mlt_producer self, mlt_position position) |
| Seek to a specified position. More... | |
| int | mlt_producer_seek_time (mlt_producer self, const char *time) |
| Seek to a specified time string. More... | |
| mlt_service | mlt_producer_service (mlt_producer self) |
| Get the parent service object. More... | |
| void | mlt_producer_set_creation_time (mlt_producer self, int64_t creation_time) |
| Set the creation time for the producer. More... | |
| int | mlt_producer_set_in_and_out (mlt_producer self, mlt_position in, mlt_position out) |
| Set the in and out points. More... | |
| int | mlt_producer_set_speed (mlt_producer self, double speed) |
| Set the playing speed. More... | |
| Public Member Functions inherited from mlt_service_s | |
| void | mlt_service_apply_filters (mlt_service self, mlt_frame frame, int index) |
| Recursively apply attached filters. More... | |
| int | mlt_service_attach (mlt_service self, mlt_filter filter) |
| Attach a filter. More... | |
| mlt_cache_item | mlt_service_cache_get (mlt_service self, const char *name) |
| Get an object from a service's cache. More... | |
| int | mlt_service_cache_get_size (mlt_service self, const char *name) |
| Get the current maximum size of the named cache. More... | |
| void | mlt_service_cache_put (mlt_service self, const char *name, void *data, int size, mlt_destructor destructor) |
| Put an object into a service's cache. More... | |
| void | mlt_service_cache_set_size (mlt_service self, const char *name, int size) |
| Set the number of items to cache for the named cache. More... | |
| void | mlt_service_close (mlt_service self) |
| Destroy a service. More... | |
| int | mlt_service_connect_producer (mlt_service self, mlt_service producer, int index) |
| Connect a producer to the service. More... | |
| mlt_service | mlt_service_consumer (mlt_service self) |
| Obtain the consumer a service is connected to. More... | |
| int | mlt_service_detach (mlt_service self, mlt_filter filter) |
| Detach a filter. More... | |
| int | mlt_service_disconnect_all_producers (mlt_service self) |
| Remove the all the attached producers. More... | |
| int | mlt_service_disconnect_producer (mlt_service self, int index) |
| Remove the N-th producer. More... | |
| mlt_filter | mlt_service_filter (mlt_service self, int index) |
| Retrieve an attached filter. More... | |
| int | mlt_service_filter_count (mlt_service self) |
| Get the number of filters attached. More... | |
| int | mlt_service_get_frame (mlt_service self, mlt_frame_ptr frame, int index) |
| Obtain a frame. More... | |
| mlt_service | mlt_service_get_producer (mlt_service self) |
| Get the first connected producer. More... | |
| mlt_service_type | mlt_service_identify (mlt_service self) |
| Identify the subclass of the service. More... | |
| int | mlt_service_init (mlt_service self, void *child) |
| Initialize a service. More... | |
| int | mlt_service_insert_producer (mlt_service self, mlt_service producer, int index) |
| Insert a producer connected to the service. More... | |
| void | mlt_service_lock (mlt_service self) |
| Acquire a mutual exclusion lock on this service. More... | |
| int | mlt_service_move_filter (mlt_service self, int from, int to) |
| Reorder the attached filters. More... | |
| mlt_service | mlt_service_producer (mlt_service self) |
| Obtain the producer a service is connected to. More... | |
| mlt_profile | mlt_service_profile (mlt_service self) |
| Retrieve the profile. More... | |
| mlt_properties | mlt_service_properties (mlt_service self) |
| Return the properties object. More... | |
| void | mlt_service_set_profile (mlt_service self, mlt_profile profile) |
| Set the profile for a service. More... | |
| void | mlt_service_unlock (mlt_service self) |
| Release a mutual exclusion lock on this service. More... | |
| Public Member Functions inherited from mlt_properties_s | |
| char * | mlt_properties_anim_get (mlt_properties self, const char *name, int position, int length) |
| Get a string value by name at a frame position. More... | |
| mlt_color | mlt_properties_anim_get_color (mlt_properties self, const char *name, int position, int length) |
| Get a color associated to the name at a frame position. More... | |
| double | mlt_properties_anim_get_double (mlt_properties self, const char *name, int position, int length) |
| Get a real number associated to the name at a frame position. More... | |
| int | mlt_properties_anim_get_int (mlt_properties self, const char *name, int position, int length) |
| Get an integer associated to the name at a frame position. More... | |
| mlt_rect | mlt_properties_anim_get_rect (mlt_properties self, const char *name, int position, int length) |
| Get a rectangle associated to the name at a frame position. More... | |
| int | mlt_properties_anim_set (mlt_properties self, const char *name, const char *value, int position, int length) |
| Set a property to a string at a frame position. More... | |
| int | mlt_properties_anim_set_color (mlt_properties self, const char *name, mlt_color value, int position, int length, mlt_keyframe_type keyframe_type) |
| Set a property to an integer value by color at a frame position. More... | |
| int | mlt_properties_anim_set_double (mlt_properties self, const char *name, double value, int position, int length, mlt_keyframe_type keyframe_type) |
| Set a property to a real number at a frame position. More... | |
| int | mlt_properties_anim_set_int (mlt_properties self, const char *name, int value, int position, int length, mlt_keyframe_type keyframe_type) |
| Set a property to an integer value at a frame position. More... | |
| int | mlt_properties_anim_set_rect (mlt_properties self, const char *name, mlt_rect value, int position, int length, mlt_keyframe_type keyframe_type) |
| Set a property to a rectangle value at a frame position. More... | |
| void | mlt_properties_clear (mlt_properties self, const char *name) |
| Remove the value for a property. More... | |
| void | mlt_properties_close (mlt_properties self) |
| Close a properties object. More... | |
| int | mlt_properties_copy (mlt_properties self, mlt_properties that, const char *prefix) |
| Copy all serializable properties that match a prefix to another properties object. More... | |
| int | mlt_properties_count (mlt_properties self) |
| Return the number of items in the list. More... | |
| void | mlt_properties_debug (mlt_properties self, const char *title, FILE *output) |
| Output the properties to a file handle. More... | |
| int | mlt_properties_dec_ref (mlt_properties self) |
| Decrement the reference count. More... | |
| int | mlt_properties_dir_list (mlt_properties self, const char *dirname, const char *pattern, int sort) |
| Get the contents of a directory. More... | |
| void | mlt_properties_dump (mlt_properties self, FILE *output) |
| Dump the properties to a file handle. More... | |
| int | mlt_properties_exists (mlt_properties self, const char *name) |
| Check if a property exists. More... | |
| char * | mlt_properties_frames_to_time (mlt_properties self, mlt_position frames, mlt_time_format format) |
| Convert a frame count to a time string. More... | |
| int | mlt_properties_from_utf8 (mlt_properties properties, const char *name_from, const char *name_to) |
| Convert UTF-8 property to the locale-defined encoding. More... | |
| char * | mlt_properties_get (mlt_properties self, const char *name) |
| Get a string value by name. More... | |
| mlt_animation | mlt_properties_get_animation (mlt_properties self, const char *name) |
| Get the animation associated to the name. More... | |
| mlt_color | mlt_properties_get_color (mlt_properties self, const char *name) |
| Convert a numeric property to a tuple of color components. More... | |
| void * | mlt_properties_get_data (mlt_properties self, const char *name, int *length) |
| Get a binary data value associated to the name. More... | |
| void * | mlt_properties_get_data_at (mlt_properties self, int index, int *size) |
| Get a data value by index. More... | |
| double | mlt_properties_get_double (mlt_properties self, const char *name) |
| Get a floating point value associated to the name. More... | |
| int | mlt_properties_get_int (mlt_properties self, const char *name) |
| Get an integer associated to the name. More... | |
| int64_t | mlt_properties_get_int64 (mlt_properties self, const char *name) |
| Get a 64-bit integer associated to the name. More... | |
| const char * | mlt_properties_get_lcnumeric (mlt_properties self) |
| Get the numeric locale for this properties object. More... | |
| char * | mlt_properties_get_name (mlt_properties self, int index) |
| Get a property name by index. More... | |
| mlt_position | mlt_properties_get_position (mlt_properties self, const char *name) |
| Get a position value associated to the name. More... | |
| mlt_properties | mlt_properties_get_properties (mlt_properties self, const char *name) |
| Get a nested properties object by name. More... | |
| mlt_properties | mlt_properties_get_properties_at (mlt_properties self, int index) |
| Get a nested properties object by index. More... | |
| mlt_rect | mlt_properties_get_rect (mlt_properties self, const char *name) |
| Get a rectangle associated to the name. More... | |
| char * | mlt_properties_get_time (mlt_properties self, const char *name, mlt_time_format format) |
| Get a time string associated to the name. More... | |
| char * | mlt_properties_get_value (mlt_properties self, int index) |
| Get a property's string value by index. More... | |
| char * | mlt_properties_get_value_tf (mlt_properties self, int index, mlt_time_format time_format) |
| Get a property's string value by index (with time format). More... | |
| int | mlt_properties_inc_ref (mlt_properties self) |
| Increment the reference count. More... | |
| int | mlt_properties_inherit (mlt_properties self, mlt_properties that) |
| Copy all serializable properties to another properties list. More... | |
| int | mlt_properties_init (mlt_properties self, void *child) |
| Initialize a properties object that was already allocated. More... | |
| int | mlt_properties_is_anim (mlt_properties self, const char *name) |
| Check if a property is animated. More... | |
| int | mlt_properties_is_sequence (mlt_properties properties) |
| Determine if the properties list is really just a sequence or ordered list. More... | |
| mlt_properties | mlt_properties_load (const char *filename) |
| Create a properties object by reading a .properties text file. More... | |
| void | mlt_properties_lock (mlt_properties self) |
| Protect a properties list against concurrent access. More... | |
| void | mlt_properties_mirror (mlt_properties self, mlt_properties that) |
| Set a properties list to be a mirror copy of another. More... | |
| mlt_properties | mlt_properties_new () |
| Create a properties object. More... | |
| int | mlt_properties_parse (mlt_properties self, const char *namevalue) |
| Set a value by parsing a name=value string. More... | |
| mlt_properties | mlt_properties_parse_yaml (const char *filename) |
| Parse a YAML Tiny file by name. More... | |
| int | mlt_properties_pass (mlt_properties self, mlt_properties that, const char *prefix) |
| Pass all serializable properties that match a prefix to another properties object. More... | |
| int | mlt_properties_pass_list (mlt_properties self, mlt_properties that, const char *list) |
| Copy all properties specified in a comma-separated list to another properties list. More... | |
| void | mlt_properties_pass_property (mlt_properties self, mlt_properties that, const char *name) |
| Copy a property to another properties list. More... | |
| int | mlt_properties_preset (mlt_properties self, const char *name) |
| Set properties from a preset. More... | |
| int | mlt_properties_ref_count (mlt_properties self) |
| Get the reference count. More... | |
| int | mlt_properties_rename (mlt_properties self, const char *source, const char *dest) |
| Rename a property. More... | |
| int | mlt_properties_save (mlt_properties self, const char *filename) |
| Save the properties to a file by name. More... | |
| char * | mlt_properties_serialise_yaml (mlt_properties self) |
| Serialize a properties list as a string of YAML Tiny. More... | |
| int | mlt_properties_set (mlt_properties self, const char *name, const char *value) |
| Set a property to a string. More... | |
| int | mlt_properties_set_color (mlt_properties self, const char *name, mlt_color color) |
| Set a property to an integer value by color. More... | |
| int | mlt_properties_set_data (mlt_properties self, const char *name, void *value, int length, mlt_destructor destroy, mlt_serialiser serialise) |
| Store binary data as a property. More... | |
| int | mlt_properties_set_double (mlt_properties self, const char *name, double value) |
| Set a property to a floating point value. More... | |
| int | mlt_properties_set_int (mlt_properties self, const char *name, int value) |
| Set a property to an integer value. More... | |
| int | mlt_properties_set_int64 (mlt_properties self, const char *name, int64_t value) |
| Set a property to a 64-bit integer value. More... | |
| int | mlt_properties_set_lcnumeric (mlt_properties self, const char *locale) |
| Set the numeric locale used for string/double conversions. More... | |
| int | mlt_properties_set_or_default (mlt_properties self, const char *name, const char *value, const char *def) |
| Set or default a property to a string. More... | |
| int | mlt_properties_set_position (mlt_properties self, const char *name, mlt_position value) |
| Set a property to a position value. More... | |
| int | mlt_properties_set_properties (mlt_properties self, const char *name, mlt_properties properties) |
| Set a property to a nested properties object. More... | |
| int | mlt_properties_set_rect (mlt_properties self, const char *name, mlt_rect value) |
| Set a property to a rectangle value. More... | |
| int | mlt_properties_set_string (mlt_properties self, const char *name, const char *value) |
| Set a property to a string. More... | |
| mlt_position | mlt_properties_time_to_frames (mlt_properties self, const char *time) |
| Convert a time string to a frame count. More... | |
| void | mlt_properties_unlock (mlt_properties self) |
| End protecting a properties list against concurrent access. More... | |
Data Fields | |
| struct mlt_producer_s | parent |
| Data Fields inherited from mlt_producer_s | |
| mlt_destructor | close |
| the destructor virtual function More... | |
| void * | close_object |
| the object supplied to the close virtual function More... | |
| int(* | get_frame )(mlt_producer, mlt_frame_ptr, int) |
| Get a frame of data (virtual function). More... | |
| struct mlt_service_s | parent |
| A producer is a service. More... | |
| int(* | seek )(mlt_producer, mlt_position) |
| Seek to a specified position (virtual function). More... | |
| int(* | set_in_and_out )(mlt_producer, mlt_position, mlt_position) |
| Set the in and out points. More... | |
| Data Fields inherited from mlt_service_s | |
| mlt_destructor | close |
| the destructor virtual function More... | |
| void * | close_object |
| the object supplied to the close virtual function More... | |
| int(* | get_frame )(mlt_service self, mlt_frame_ptr frame, int index) |
| Get a frame of data (virtual function). More... | |
| Data Fields inherited from mlt_properties_s | |
| mlt_destructor | close |
| the destructor virtual function More... | |
| void * | close_object |
| the object supplied to the close virtual function More... | |
Private Attributes | |
| void * | local |
| instance object More... | |
Detailed Description
Chain class.
The chain is a producer class that that can connect multiple link producers in a sequence.
Member Function Documentation
◆ mlt_chain_attach()
Attach a link.
- Parameters
-
self a chain link the link to attach
- Returns
- true if there was an error
◆ mlt_chain_attach_normalizers()
| void mlt_chain_attach_normalizers | ( | mlt_chain | self | ) |
Attach normalizer links.
- Parameters
-
self a chain
◆ mlt_chain_close()
| void mlt_chain_close | ( | mlt_chain | self | ) |
Close the chain and free its resources.
- Parameters
-
self a chain
◆ mlt_chain_detach()
Detach a link.
- Parameters
-
self a chain link the link to detach
- Returns
- true if there was an error
◆ mlt_chain_get_source()
| mlt_producer mlt_chain_get_source | ( | mlt_chain | self | ) |
Get the source producer.
- Parameters
-
self a chain
- Returns
- the source producer
◆ mlt_chain_init()
| mlt_chain mlt_chain_init | ( | mlt_profile | profile | ) |
Construct a chain.
- Returns
- the new chain
◆ mlt_chain_link()
Retrieve an attached link.
- Parameters
-
self a chain index which one of potentially multiple links
- Returns
- the link or null if there was an error
◆ mlt_chain_link_count()
| int mlt_chain_link_count | ( | mlt_chain | self | ) |
Get the number of links attached.
- Parameters
-
self a chain
- Returns
- the number of attached links or -1 if there was an error
◆ mlt_chain_move_link()
| int mlt_chain_move_link | ( | mlt_chain | self, |
| int | from, | ||
| int | to | ||
| ) |
Reorder the attached links.
- Parameters
-
self a chain from the current index value of the link to move to the new index value for the link specified in from
- Returns
- true if there was an error
◆ mlt_chain_set_source()
| void mlt_chain_set_source | ( | mlt_chain | self, |
| mlt_producer | source | ||
| ) |
Set the source producer.
- Parameters
-
self a chain source the new source producer
Field Documentation
◆ local
|
private |
instance object
◆ parent
| struct mlt_producer_s mlt_chain_s::parent |
The documentation for this struct was generated from the following files:
